Appleton Electric - SolaHD SCP30S5-DN 5 VDC Output 30 W Din Rail Encapsulated Switch Power Supply

CopyCopy
Appleton Electric - SolaHD SCP30S5-DN 5 VDC Output 30 W Din Rail Encapsulated Switch Power Supply

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 783472152629

  • Amperage - 6 Amp

  • Applications - For Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation

  • Catalog Number - SCP30S5DN

  • ERP_productname - HEVI SCP30S5-DN 30W 5V SW PWR SPLY DIN

Packaging

  • 1 ea

EAN

00783472152629

Part #

181682

Catalog #

SCP30S5-DN

Commercial reference

SCP30S5-DN

12-Digit UPC:

783472152629

Amperage:

6 Amp

Applications:

For Industrial Control, Process Control, Machine Control, Building Automation, Instrumentation

Catalog Number:

SCP30S5DN

ERP_productname:

HEVI SCP30S5-DN 30W 5V SW PWR SPLY DIN

Enclosure:

IP20

Family Brand Name:

Emerson Electric Co.

Heights:

1.29 Inch

Input Voltage:

85 - 264 VAC at 50/60 Hz, 100 - 375 VDC

Length:

4.72 Inch

Material:

Case Material/Potting: UL94-VO

Number of Phases:

1 Phase

Output Voltage:

5 V

Type:

SCP Series, 30 Watt; Dual

Voltage:

3.3 Volt

Wattage:

30 - 100 Watt

Widths:

2.55 in

SoneparProductId:

SKU_US_28359703

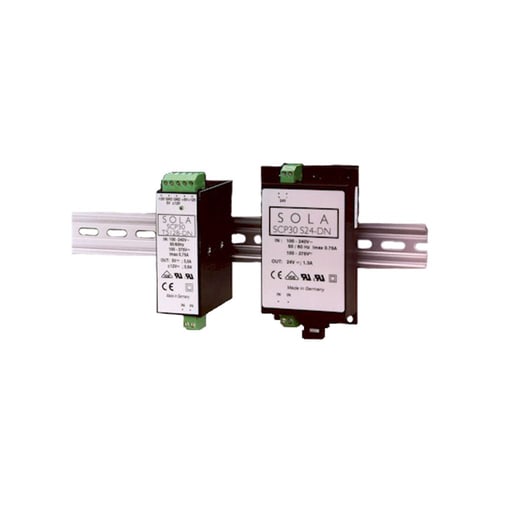

SCP Series switchers are compact, rugged power supplies designed to power many of your industrial control and instrumentation devices and equipment, with high reliability and tight regulation through the most difficult factory floor conditions around the globe. These unique power supplies feature easy-to-install DIN Rail and chassis mounting. Terminations are easy to access. The encapsulated IP20 design and a wide range of voltages will support low power devices. Features: cRUus, CE, IP20; International approvals for global use; DIN Rail or Chassis Mount; Rugged, encapsulated design to resist environment; IP20 protection; Many output voltages, 3.3-48 Volts; single, dual, triple
