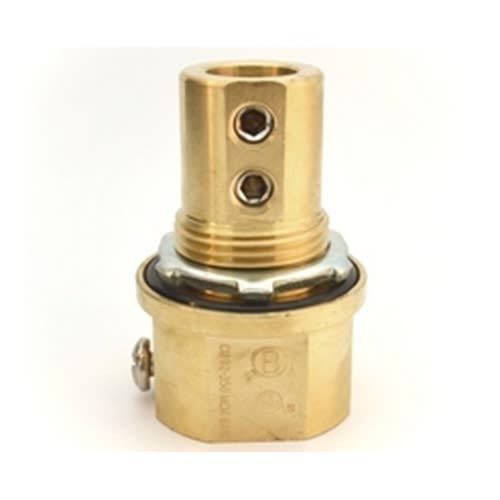

Bridgeport Fittings - Bridgeport MCH-100 1" Grounding Hub, Raintight, Brass
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781747023469
Applications - The MCH-100 is listed for use in wet & dry locations as a connector for rigid metal conduit or EMT with a Bridgeport Fittings connector. The MCH-100 will provide a wet locations seal when installed with a rated device or enclosure. Rigid Metallic raceways which contain Ground Electrode Conductors (G.E.C.) are required to be bonded at the enclosure and where the conductor exits the raceway for attachment to the ground electrode. The MCH-100 can be used in both applications: at the enclosure and at the end of the bonding conductor raceway. Patent Pending
Catalog Number - MCH-100
Conductor Material - Brass
Conductor Size - 2 AWG-350 kcmil
Packaging
1 ea
EAN
Part #
445221
Catalog #
MCH-100
Commercial reference
MCH-100
12-Digit UPC:
781747023469
Applications:
The MCH-100 is listed for use in wet & dry locations as a connector for rigid metal conduit or EMT with a Bridgeport Fittings connector. The MCH-100 will provide a wet locations seal when installed with a rated device or enclosure. Rigid Metallic raceways which contain Ground Electrode Conductors (G.E.C.) are required to be bonded at the enclosure and where the conductor exits the raceway for attachment to the ground electrode. The MCH-100 can be used in both applications: at the enclosure and at the end of the bonding conductor raceway. Patent Pending
Catalog Number:
MCH-100
Conductor Material:
Brass
Conductor Size:
2 AWG-350 kcmil
ERP_productname:
BRID MCH-100 1" BRASS GRND HUB RT
Family Brand Name:
Bridgeport Fittings, LLC.
Size:
1" with BPT Steel Wet or Dry locations connector IN
Type:
Grounding and Bonding Hubs
