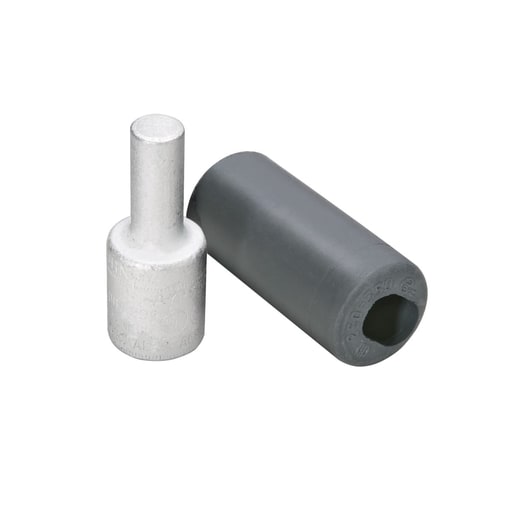

Burndy - Burndy AYP250 Aluminum Compression Pin Adapter, 250 kcmil, 047" Plug Dia, 122" Plug Length, Al/Cu Rated, Tin Plated

Aluminum Compression Pin Adapter, 250 kcmil, 0.47" Plug Dia, 1.22" Plug Length, Al/Cu Rated, Tin Plated. Features: All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion; Provides the shortest connector length design possible permitting easy installation in equipment with limited working space; Solid electro-tin plated aluminum plug; Proper electrical connection made easily and eliminates the \"how tight is tight\" issue; Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment; Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment; Electro-tin plating resists corrosion; Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection; EPDM rubber covers supplied with each connector and rated for 600V eliminating taping; Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements; Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened; Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
