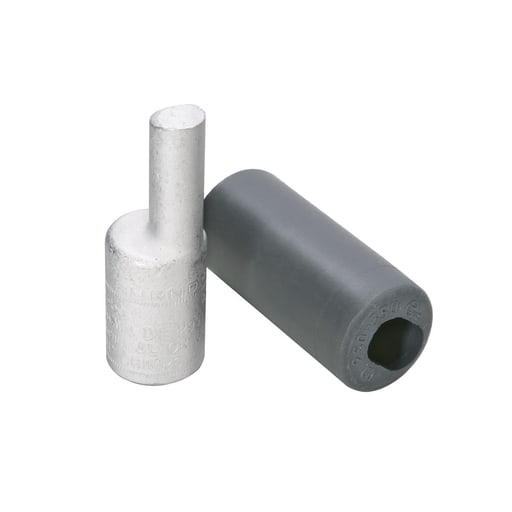

Burndy - Burndy AYPO600 Aluminum Compression Pin Adapter, 600 kcmil, 073" Plug Dia, 164" Plug length, Al/Cu Rated, Tin Plated

CopyCopy
Burndy - Burndy AYPO600 Aluminum Compression Pin Adapter, 600 kcmil, 073" Plug Dia, 164" Plug length, Al/Cu Rated, Tin Plated

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781810738504

  • Applications - For Aluminum And Copper Conductors, Mechanical Connectors In Molded Case Circuit Breakers, Panel Board Equipment And Meter Sockets

  • Buy American - Y

  • Catalog Number - AYPO600

  • Conductor Material - ALUMINUM / COPPER

Packaging

  • 1 ea

EAN

00781810738504

Part #

109499

Catalog #

AYPO600

Commercial reference

AYPO600

12-Digit UPC:

781810738504

Applications:

For Aluminum And Copper Conductors, Mechanical Connectors In Molded Case Circuit Breakers, Panel Board Equipment And Meter Sockets

Buy American:

Y

Catalog Number:

AYPO600

Conductor Material:

ALUMINUM / COPPER

Conductor Size:

600 kcmil

Country of Origin:

USA

ERP_productname:

BUR AYPO600 600 TERMINATION PLUG

Family Brand Name:

Hubbell Incorporated

Finish:

Tin-Plated,Tin-Plated

Heights:

0.73 Inch

Length:

4.02 Inch

Material:

Aluminum

Max Voltage:

35000 V

Overall Length:

102 mm

Size:

4.02 IN Length

Sub Brand:

Burndy

Type:

Aluminum Pin Adapters

Voltage:

35000 Volt

Widths:

4.02 in

Wire Size:

600 kcmil

SoneparProductId:

SKU_US_191788824

Aluminum Compression Pin Adapter, 600 kcmil, 0.73" Plug Dia, 1.64" Plug length, Al/Cu Rated, Tin Plated. Features: All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion; Provides the shortest connector length design possible permitting easy installation in equipment with limited working space; Solid electro-tin plated aluminum plug; Proper electrical connection made easily and eliminates the \"how tight is tight\" issue; Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment; Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment; Electro-tin plating resists corrosion; Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection; EPDM rubber covers supplied with each connector and rated for 600V eliminating taping; Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements; Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened; Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
