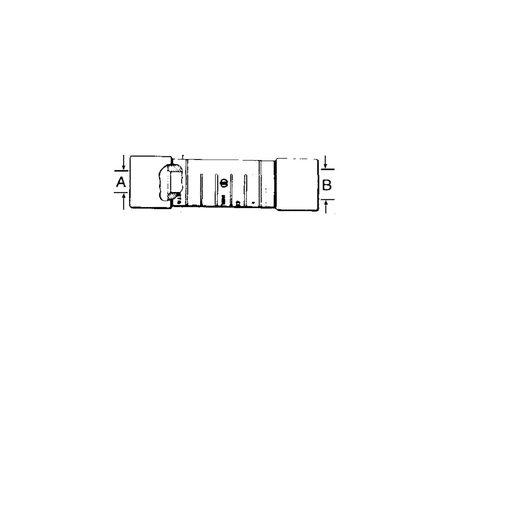

Burndy - Burndy ES2R2R Insulated AL service entrance compression sleeve for combinations of insulated CU, AL and ACSR conductors, Color Code: Red (Side A), Red (Sdie B)

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781810140956

  • Applications - Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors and in Overhead Distribution

  • Buy American - Y

  • Catalog Number - ES2R2R

  • Conductor Size - 2 AWG

Packaging

  • 1 ea

EAN

00781810140956

Part #

185567

Catalog #

ES2R2R

Commercial reference

ES2R2R

12-Digit UPC:

781810140956

Applications:

Insulated Combinations Of Copper, Aluminum, ACSR Compressed Conductors and in Overhead Distribution

Buy American:

Y

Catalog Number:

ES2R2R

Conductor Size:

2 AWG

Country of Origin:

USA

ERP_productname:

BUR ES2R2R 2-2 ALCU SEC SLEEVE

Family Brand Name:

Burndy

Heights:

0.74 Inch

Length:

2-3/4 Inch

Material:

Aluminum

Overall Length:

70 mm

Sub Brand:

Insulink™

Type:

Insulated Service Entrance Connectors

Widths:

0.74 in

SoneparProductId:

SKU_US_191898138

Insulated AL service entrance compression sleeve for combinations of insulated CU, AL and ACSR conductors, Color Code: Red (Side A), Red (Sdie B). Features: Pre-insulated service entrance compression connector; Polyethylene caps prevent dirt from accumulating in barrel, grip cable for easy two-hand installation, seal out moisture; Connector is anchored to jacket assuring the connector is under the die when crimping; Prefilled with joint compound and stripsealed to limit oxidation and increase life of the connection
