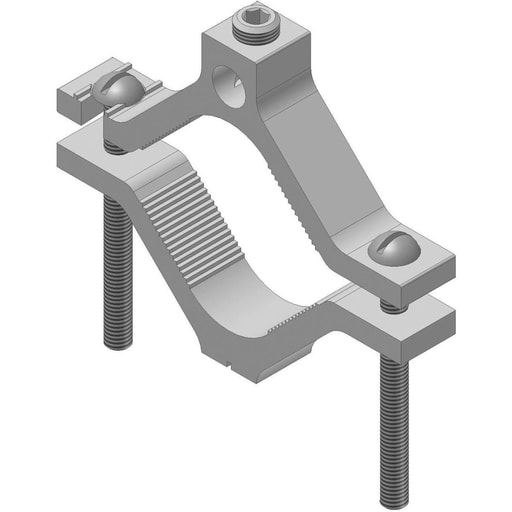

Burndy - Burndy GC15A Mechanical Grounding Connector, Cable to Water Pipe, 14 AWG - 1/0 AWG, 1/2" - 1" Pipe, Al/Cu Rated

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781810240007

  • Applications - For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit

  • Buy American - Y

  • Catalog Number - GC15A

  • Conductor Size - 1 AWG

Packaging

  • 1 ea

EAN

00781810240007

Part #

109168

Catalog #

GC15A

Commercial reference

GC15A

12-Digit UPC:

781810240007

Applications:

For Use With Either Copper Or Aluminum Conductors To Copper Water Pipe, Galvanized Pipe Or Steel Conduit

Buy American:

Y

Catalog Number:

GC15A

Conductor Size:

1 AWG

Country of Origin:

USA

ERP_productname:

BUR GC15A 14-1/0 GROUND CLAMP

Family Brand Name:

Hubbell Incorporated

Finish:

Tin Plated

Heights:

2-1/4 Inch

Length:

0.69 Inch

Material:

Aluminum

Max Voltage:

600 V

Overall Length:

57 mm

Sub Brand:

Burndy

Type:

GC-A, Dual Rated

Voltage:

600 Volt

Widths:

0.69 in

SoneparProductId:

SKU_US_125793598

Dual Rated Ground Clamps, Cable to Water Pipe, 1/0-14 AWG, 1/2-3/4-1 pipe, Al/Cu Rated. CMC® Dual Rated Ground Clamps are manufactured from high strength 6061-T6 aluminum alloy to insure both maximum strength and conductivity. They are dual rated for both copper and aluminum conductors and are electro tin plated to provide low contact resistance and protection against corrosion. They effectively ground copper or aluminum conductors to copper water pipe, galvanized pipe, or steel conduit. Features: CMC® dual rated aluminum ground clamps are manufactured from high strength 6061-T6 aluminum alloy to ensure both maximum strength and conductivity.; Electro tin plated to provide low contact resistance and protection from corrosion. They also cover a range from 1/2. to 4. pipe with a ground wire range covering 250 kcmil to #14 AWG; Effectively ground copper or aluminum conductors to copper pipe, galvanized pipe, or steel conduit
