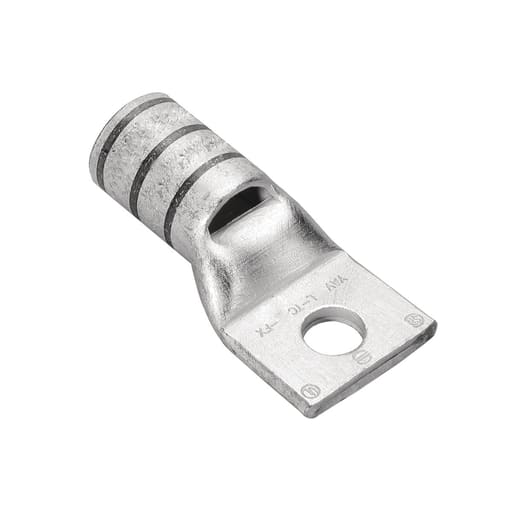

Burndy - Burndy YAV4CLBOX Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4 Flex, 1/4" Stud, Short Barrel, Tin Plated

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 781810539309

  • Applications - For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance

  • Buy American - Y

  • Catalog Number - YAV4CLBOX

  • Color - Black,White

Packaging

  • 1 ea

EAN

00781810539309

Part #

181168

Catalog #

YAV4CLBOX

Commercial reference

YAV4CLBOX

12-Digit UPC:

781810539309

Applications:

For Use On Type AN Aircraft Cable, Extra Flexible Conductors And Commercial (Code) Conductors, Industrials, Hospitals, Electric Utilities, Marine, Computers, And Other Equipment Subject To Vibration Or Requiring Dependable Electrical Performance

Buy American:

Y

Catalog Number:

YAV4CLBOX

Color:

Black,White

Country of Origin:

USA

ERP_productname:

BUR YAV4CLBOX 4AWG RING LUG

Family Brand Name:

Hubbell Incorporated

Heights:

0.36 Inch

Length:

1.37 Inch

Material:

Copper

Overall Length:

1.37 in

Sub Brand:

Burndy

Type:

Ring Tongue

Widths:

0.56 in

SoneparProductId:

SKU_US_191813837

Copper Compression Lug, Ring Tongue, 1 Hole w/ Inspection Hole, AN-4 Flex, 1/4" Stud, Short Barrel, Tin Plated. Features: Manufactured from seamless pure electrolytic copper tubing to provide maximum conductivity, low resistance and excellent ductility for crimping; Seamless tubular crimp barrel design - No seams to split resulting in a very high quality electrical connection, also can be used on solid conductor; Double thick tongue structurally a very strong terminal tongue; Produced from tubular copper, extra copper material assures the compression connector will operate cooler than the conductors it connects; Internally bevelled barrel for easy cable entry, especially for flexible conductors; Inspection hole provides easy visual check for proper conductor insertion; Electro-tin plated for a long lasting durable corrosion resistance
