Burndy - Burndy YGIBW284002N Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Wide Flange, 0338" - 0400" Thickness, 2 holes, 1/2" Stud
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 781810034996
Applications - For Direct Burial Cables
Buy American - Y
Catalog Number - YGIBW284002N
Conductor Size - 1 AWG
Packaging
1 ea
EAN
00781810034996
Part #
189807
Catalog #
YGIBW28-400-2N
Commercial reference
YGIBW28-400-2N
12-Digit UPC:
781810034996
Applications:
For Direct Burial Cables
Buy American:
Y
Catalog Number:
YGIBW284002N
Conductor Size:
1 AWG
Country of Origin:
USA
ERP_productname:
BUR YGIBW28-400-2N
Family Brand Name:
Hubbell Incorporated
Heights:
3 Inch
Length:
3 Inch
Material:
Copper
Overall Length:
76 mm
Sub Brand:
Burndy
Type:
Taps
Widths:
1.13 in
SoneparProductId:
SKU_US_191861252

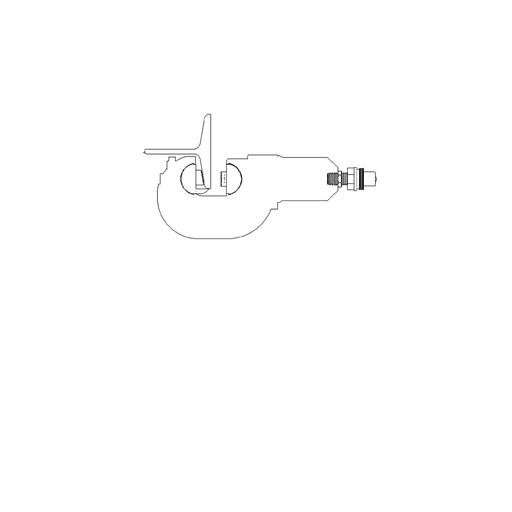

Copper Compression Connector, Cable to Steel, 2 AWG - 4/0 AWG, Wide Flange, 0.338" - 0.400" Thickness, 2 holes, 1/2" Stud. Features: Irreversible compression ground connector allowing attachment to a structural steel standard (Angled) or wide flange (Parallel) beam; Made of high conductivity wrought copper and prefilled with PENETROX™ E compound and strip sealed
