Essential specifications
12-Digit UPC - 622697309824
Catalog Number - 27EC12/2G09
Country of Origin - Mexico
ERP_productname - MTLX 27EC12/2G09 MWS EXTENDER
Family Brand Name - Modular Wiring Systems
Packaging
1 ea
EAN
00622697309824
Part #
160004
Catalog #
27EC12/2G09
Commercial reference
27EC12/2G09
12-Digit UPC:
622697309824
Catalog Number:
27EC12/2G09
Country of Origin:
Mexico
ERP_productname:
MTLX 27EC12/2G09 MWS EXTENDER
Family Brand Name:
Modular Wiring Systems
Heights:
4 Inch
Length:
13-3/4 Inch
Voltage:
277 Volt
Widths:
13.75 in
SoneparProductId:
SKU_US_191792084

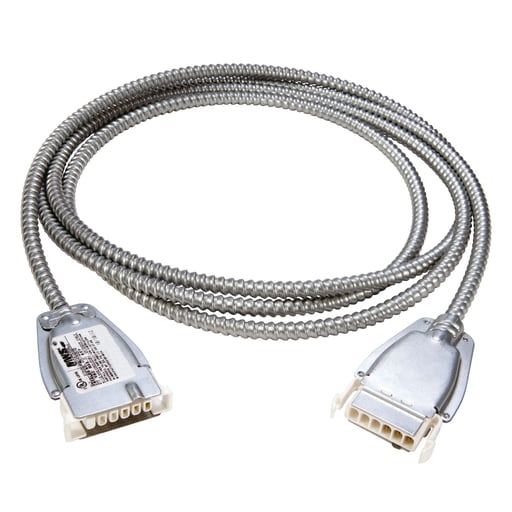

277V Extender Cable, Num 12, 2 Conductors Plus Ground, 9-ft cable length. Features: UL Listed under Standard 183 for make or break under load; Meets requirements of Article 604 of the National Electrical Code; Rated at 20 amperes with full-size ground wire; Copper conductors with THHN insulation rated at 90±C; Galvanized steel exterior with integral keying for voltage; Valox 365 constructed contact housing; Contact housings approved for environmental air plenums; Double-blade contact ensures proper mating of electrical components; Supplies power between MWS components without use of couplers
