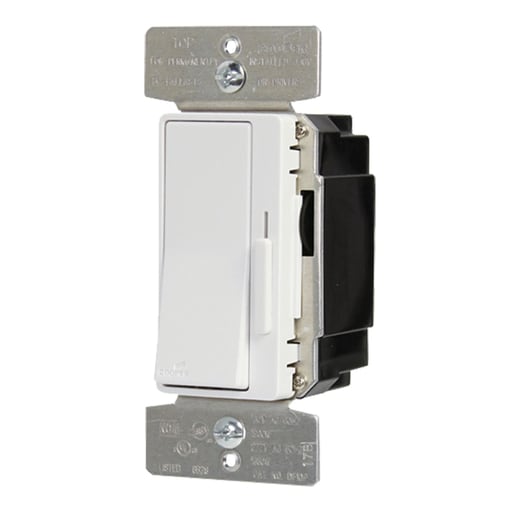

Cooper Lighting - Greengate WBSD-DEC-C1 Decorator Wallswitch Slide Dimmer, 120V, Multiload, White/Ivory/Almond

CopyCopy
Cooper Lighting - Greengate WBSD-DEC-C1 Decorator Wallswitch Slide Dimmer, 120V, Multiload, White/Ivory/Almond

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083735402

  • Amperage - 5 at (120V)

  • Applications - Lighting

  • Catalog Number - WBSD-DEC-C1

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00080083735402

Part #

111968

Catalog #

WBSD-DEC-C1

Commercial reference

WBSD-DEC-C1

12-Digit UPC:

080083735402

Amperage:

5 at (120V)

Applications:

Lighting

Catalog Number:

WBSD-DEC-C1

Country of Origin:

China

ERP_productname:

HALO WBSD-DEC-C1 DECORATOR DIMMER, ALL-LOAD-W,V,A

Family Brand Name:

Greengate

Heights:

4.9 Inch

Length:

3-1/4 Inch

Material:

Plastic

Mounting Type:

Wall Switch

Size:

3.25 IN Length 2.8 IN Width 4.9 IN Height

Sub Brand:

Multi-Load Decorator Dimmer Wallstation

Tc Connection:

Hardwired

Type:

Wall Switch No Sensor - 120V

Voltage:

120 Volt

Wattage:

300 Watt

Widths:

2.8 in

SoneparProductId:

SKU_US_192302719

The Multi-load Decorator Dimmer provides full-range classic linear-slide dimming for 300W dimmable LED and CFL as well as 600W Incandescent, Halogen, Dimmable Fluorescent, Electronic Low Voltage & Magnetic Low Voltage light sources. Preset units feature a preset .ON/OFF. switch that automatically returns controlled light(s) to a preset level without disturbing the brightness level. The device is designed for both Single-Pole (one location) and 3-Way (multi-location) applications, and features an adjustable Rapid-Start setting which provides additional power for a brief time period to ensure lamp start-up at low dim settings. Compatible with any decorator wallplate. Compatible with most dimmable LED and CFL lamps. Adjustable rapid start feature ensures lamp start-up even at low dim levels. Features: Allows user to return to previous light level when turning lights ON; Integrated full-slide control for easy, precise operation; Can wire as Single-Pole or 3-Way, Electrostatic discharge protection; Device can be wired into either 3-Way location, load side or line side; Neutral is not required for installation of device; Adjustable low-level trim setting for optimal lamp compatibility; Face plate is removable to allow for color changes; Each package includes 3 colors; Radio Frequency Interface filtering is standard on all models
