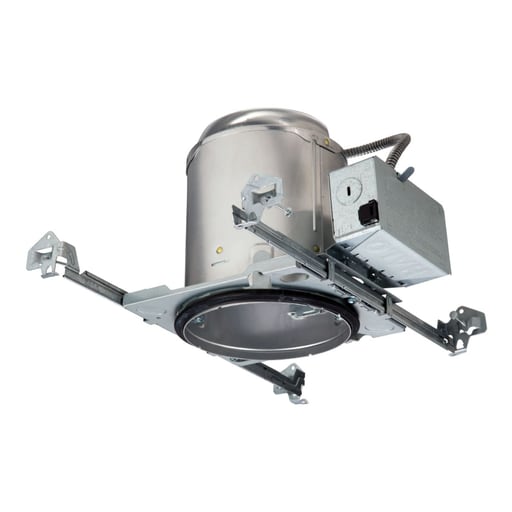

Cooper Lighting - Halo E5ICAT 5" IC, Air-Tite New Construction Recessed Downlight Housing, E26 Screw Base

CopyCopy
Cooper Lighting - Halo E5ICAT 5" IC, Air-Tite New Construction Recessed Downlight Housing, E26 Screw Base

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083737420

  • Amperage - 0.625 Amp

  • Applications - Lighting

  • Catalog Number - E5ICAT

  • Country of Origin - Mexico

Packaging

  • 1 ea

EAN

00080083737420

Part #

216636

Catalog #

E5ICAT

Commercial reference

E5ICAT

12-Digit UPC:

080083737420

Amperage:

0.625 Amp

Applications:

Lighting

Catalog Number:

E5ICAT

Country of Origin:

Mexico

ERP_productname:

HALO E5ICAT 5" IC, AIRTITE, NEW CONST HSG

Family Brand Name:

Halo

Heights:

7-1/4 Inch

Length:

13-1/2 Inch

Mounting Type:

Recessed

Sub Brand:

E5ICAT Series

Type:

5" E5 Housing

Voltage:

120 Volt

Widths:

10.5 in

SoneparProductId:

SKU_US_191775507

The E5ICAT is a compact and efficient recessed housing optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems. Features: 13.5 IN Length 10.5 IN Width 7.25 IN Height; For use in insulated ceilings; Air-Tite exclusive housing gasket; Air-Tite tested per ASTM E 283; All-Nail bar hangers with preinstalled nail and integral T-grid clip; q-channel interlocking hanger bars; Hanger bars feature Pass-N-Thru tool-less shortening; Quick connect push-in wire nuts included; Hinged junction box with Slide-N-Side; Socket bracket adjusts lamp to various trim styles and designs
