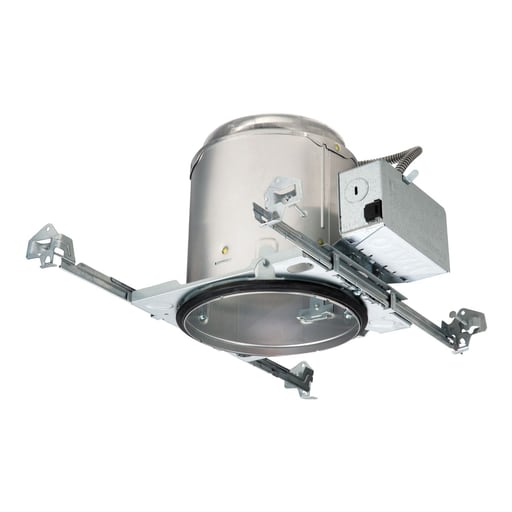

Cooper Lighting - Halo E7ICATNB 6" IC, Air-Tite, New Construction Recessed Downlight Housing

CopyCopy
Cooper Lighting - Halo E7ICATNB 6" IC, Air-Tite, New Construction Recessed Downlight Housing

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083737697

  • Applications - Lighting

  • Catalog Number - E7ICATNB

  • Country of Origin - Mexico

  • ERP_productname - HALO E7ICATNB 6IN IC RCSD HSG

Packaging

  • 1 ea

EAN

00080083737697

Part #

165043

Catalog #

E7ICATNB

Commercial reference

E7ICATNB

12-Digit UPC:

080083737697

Applications:

Lighting

Catalog Number:

E7ICATNB

Country of Origin:

Mexico

ERP_productname:

HALO E7ICATNB 6IN IC RCSD HSG

Family Brand Name:

Halo

Heights:

7-3/8 Inch

Length:

13-5/8 Inch

Mounting Type:

Recessed

Sub Brand:

E7ICATNB Series

Type:

6" E7 Housing

Voltage:

120 Volt

Widths:

10.5 in

SoneparProductId:

SKU_US_191806671

The E7ICATNB is a compact and efficient recessed optimized and listed for EISA compliant tungsten-halogen lamps, as well as Incandescent, CFL and LED integrated lamps. Housing is suitable for residential or light commercial applications. For installation in insulated ceilings and non-insulated ceilings with airtight code compliant construction. Use with a variety of trims and finishes to create different lighting effects or to match any decor. May be retrofit with compatible HALO LED lighting systems. The E7ICATNB can save installation time. It is designed without a socket plate for use with socket supporting trims only. With these trims there is no need to spend time removing the socket plate and the fixed lamp position of socket supporting trims saves on lamp adjustment time too. Features: For use in insulated ceilings; Air-Tite exclusive housing gasket; Air-Tite tested per ASTM E 283; All-Nail bar hangers with preinstalled nail and integral T-grid clip; q-channel interlocking hanger bars; Hanger bars feature Pass-N-Thru tool-less shortening; Quick connect push-in wire nuts included; Hinged junction box with Slide-N-Side; No socket bracket speeds install, for use with socket supporting trims
