Cooper Lighting - Halo H36LVRTAT 3" Housing Non-IC Air-Tite Shallow Ceiling 12V Low Voltage Remodel, MR16
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 623961361340
Amperage - 4.167 at (12V)
Aperture Size - 3 in
Applications - Lighting
Catalog Number - H36LVRTAT
Packaging
1 ea
EAN
00623961361340
Part #
405399
Catalog #
H36LVRTAT
Commercial reference
H36LVRTAT
12-Digit UPC:
623961361340
Amperage:
4.167 at (12V)
Aperture Size:
3 in
Applications:
Lighting
Catalog Number:
H36LVRTAT
Country of Origin:
Mexico
ERP_productname:
APRO H36LVRTAT 3" NON-IC AIR-TITE LV REMODEL HOUSING
Family Brand Name:
Halo
Finish:
Raw Finish
Heights:
5.8 Inch
Length:
3-1/2 Inch
Mounting Type:
Recessed
Sub Brand:
H36LVRTAT Series
Type:
3" H3 Low Voltage Housing
Voltage:
120 Volt
Wattage:
50 Watt
Widths:
11.1 in
SoneparProductId:
SKU_US_191753832

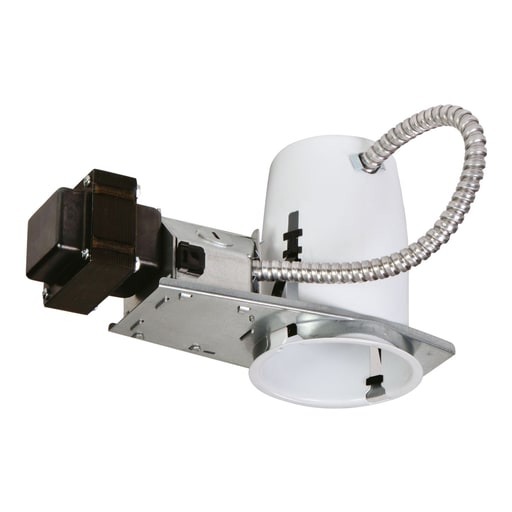

The H36LVRTAT is a Non-IC AIR-TITE™ remodel fixture for use with H3 3. series trims. For installation from below the ceiling. Housing is AIR-TITE™ rated to prevent airflow between heated or air conditioned spaces and unconditioned attic/plenum areas. For use with 12V MR16 lamps. Non-IC Housing is AIR-TITE™ but insulation must be kept 3 inches away from all sides of housing. Features: AIR-TITE™; Thermally protected; Die-formed housing and plaster frame; Boat-shape frame slips through opening and secures onto ceiling; Slide-N-Side™ wire traps; Quick Connect wiring connectors included in junction box; Housing may be removed from plaster frame for junction box access; Integral 120V transformer steps line voltage down to lamp voltage
