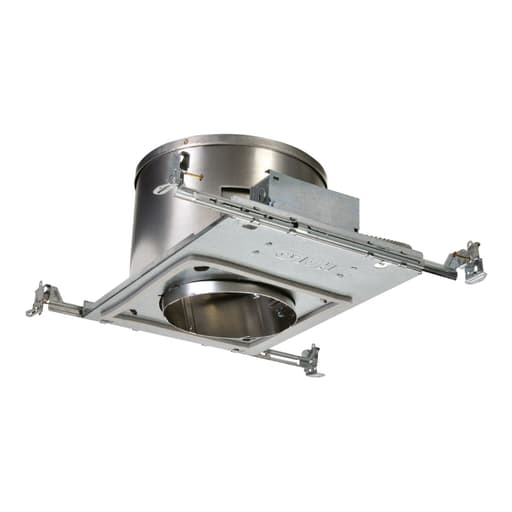

Cooper Lighting - Halo H47ICAT 6" Housing Slope Ceiling IC Air-Tite 120V Line Voltage

CopyCopy
Cooper Lighting - Halo H47ICAT 6" Housing Slope Ceiling IC Air-Tite 120V Line Voltage

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 662400302070

  • Amperage - 0.75 Amp

  • Aperture Size - 6 in

  • Applications - Lighting

  • Catalog Number - H47ICAT

Packaging

  • 1 ea

EAN

00662400302070

Part #

136936

Catalog #

H47ICAT

Commercial reference

H47ICAT

12-Digit UPC:

662400302070

Amperage:

0.75 Amp

Aperture Size:

6 in

Applications:

Lighting

Catalog Number:

H47ICAT

Country of Origin:

Mexico

ERP_productname:

HALO H47ICAT SLOPE CEILING HSNG

Family Brand Name:

Cooper Lighting Solutions

Finish:

Raw Finish

Heights:

8 Inch

Length:

18.1 Inch

Mounting Type:

Recessed

Sub Brand:

H47ICAT Series

Type:

6" Slope Ceiling Housing

Voltage:

120 Volt

Wattage:

100 Watt

Widths:

15.5 in

SoneparProductId:

SKU_US_191725725

The Halo H47ICAT is designed for sloped ceiling installations for ceilings from 2/12 to 6/12 pitch. The socket aiming mechanism allows the lamp to be aimed straight down in accordance with ceiling pitch (2/12 to 6/12). Designed for use in insulated ceilings. H47ICAT is sealed and gasketed to limit airflow between plenum and heated or air conditioned areas. Features: 18.1 IN Length 15.5 IN Width 8.0 IN Height; Got Nail!™ bar hangers; Pass-N-Thru™ tool-less shortening of bar hangers; Slide-N-Side™ wire traps; Quick Connect wiring connectors included in junction box; AIR-TITE™; Thermally protected; Die-formed housing and plaster frame; Socket aiming for ceilings from 2/12 to 6/12 pitch; Slope indicator provides quick and consistent lamp settings
