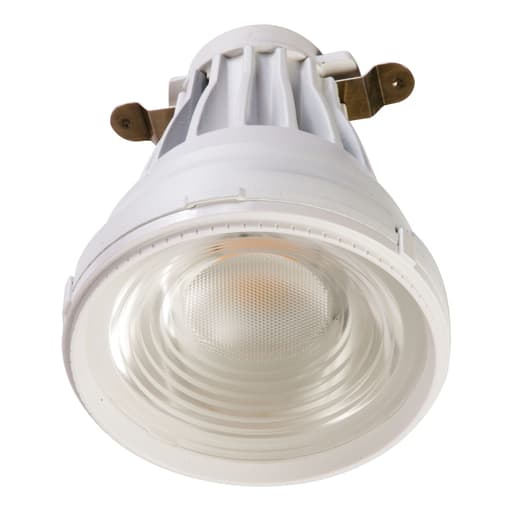

Cooper Lighting - Halo HLM6935 6" ALLSLOPE LED Light Engine, 90CRI, 3500K
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 080083716821
Amperage - 9.769 (at 277V)
Aperture Size - 6 in
Applications - Lighting
Catalog Number - HLM6935
Packaging
1 ea
EAN
00080083716821
Part #
393831
Catalog #
HLM6935
Commercial reference
HLM6935
12-Digit UPC:
080083716821
Amperage:
9.769 (at 277V)
Aperture Size:
6 in
Applications:
Lighting
Catalog Number:
HLM6935
Color Temperature:
3500 K
Country of Origin:
Mexico
ERP_productname:
APRO HLM6935 HL6 SERIES SLOPE LED MODULE, 90CRI 3500K
Family Brand Name:
Halo
Heights:
6 Inch
Length:
5-7/8 Inch
Lumens:
2,177 Lumen
Mounting Type:
Recessed
Sub Brand:
HL618TAT, HL618TCP ALLSLOPE
Type:
HL6 Allslope LED System
Voltage:
120 Volt
Wattage:
27.6 Watt
Widths:
6.0 in
SoneparProductId:
SKU_US_191853532
The Halo® HL6 LED ALLSLOPE recessed downlight system accommodates slope ceilings with pitch aiming for 2/12 (10 degrees) to 12/12 (45 degrees) pitches. The three piece system consists of a choice of a 6-inch aperture housing, available in 1200 lumens or 1800 lumens; an LED light engine with three interchangeable optics; and a trim selection from a full line of compatible trims including reflectors, baffles and lens choices. The versatile HL6 ALLSLOPE is suitable for use in residential and commercial applications, and may be dimmed with either 120V phase-cut or 0-10V controls. Features: 6-inch housing with dimmable LED driver; Fixture adjusts from 2/12 to 12/12 ceiling pitch; Light engines offered in a selection of four color temperatures; Internal socket aiming mechanism; Contoured trims complementing the range of sloped ceiling angles; 20 degree side-to-side rotation in corners with compound angles; Three beam-forming lenses
