Cooper Lighting - Halo LCR8509FSE010MW 8" all- purpose round LED module, 5000 lumens,90 CRI minimum, field selectable CCT,UNV 120 - 277V, 0-10V dimming,Matte white finish

CopyCopy
Cooper Lighting - Halo LCR8509FSE010MW 8" all- purpose round LED module, 5000 lumens,90 CRI minimum, field selectable CCT,UNV 120 - 277V, 0-10V dimming,Matte white finish

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083890101

  • Applications - Lighting

  • Catalog Number - LCR8509FSE010MW

  • Color Temperature - 5000 K

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00080083890101

Part #

132387

Catalog #

LCR8509FSE010MW

Commercial reference

LCR8509FSE010MW

12-Digit UPC:

080083890101

Applications:

Lighting

Catalog Number:

LCR8509FSE010MW

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

HALO LCR8509FSE010MW 5,000 LUMENS

Family Brand Name:

Halo

Heights:

10.24 Inch

Length:

5.71 Inch

Lumens:

5,000 Lumen

Mounting Type:

Direct

Sub Brand:

LCR Series

Type:

8" LCR

Voltage:

120 Volt

Wattage:

46.9 Watt

Widths:

10.04 in

SoneparProductId:

SKU_US_198529846

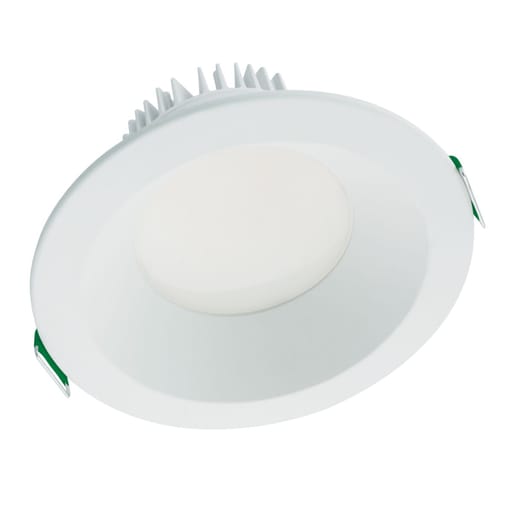

The Halo LCR8 is a 8 in. direct mount LED module with remote driver/junction box suitable for light commercial applications. This high-powered LED module installs without the use of a recessed housing, reducing time and expense. The regressed lens and smooth baffle provide high optical cutoff and improves visual comfort. The wide distribution pattern is ideal for general area illumination. Field selectable color temperature and high color rendering provide excellent color performance. LCR6 applications include mixed-use, healthcare, education and hospitality environments. Features: 5.71 IN Length 10.04 IN Width 10.24 IN Height; 2., 4., 6. & 8. downlights; Canless installation, no housing required; 6-color field selectable CCT - 2700K, 3000K, 3500K, 4000K, 5000K, 6500K; Up to 8000lm ( 8.), Up to 3000lm ( 6.) , Up to 1200lm (4.), 800lm ( 2.); Remote driver / junction box, 120-277V, Dual Dimming up to 2100lm; Low lumen option in 8.: 1000lm; Emergency Battery pack available for sizes 4\"and above; Wall Wash available in sizes 4\" & 6\; Designer trims in smooth or baffle
