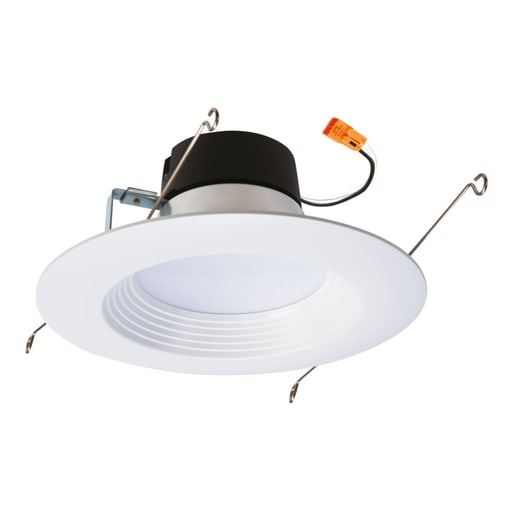

Cooper Lighting - Halo LT56069FS231EWHR 5"/6" LED Retrofit Module, Baffle Trim, 600 Lumens, 90CRI, 27K/30K/35K Selectable CCT, 120V, Matte White

CopyCopy
Cooper Lighting - Halo LT56069FS231EWHR 5"/6" LED Retrofit Module, Baffle Trim, 600 Lumens, 90CRI, 27K/30K/35K Selectable CCT, 120V, Matte White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083162468

  • Applications - Lighting

  • Catalog Number - LT56069FS231EWHR

  • Color Temperature - 3500 K

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00080083162468

Part #

208058

Catalog #

LT56069FS231EWHR

Commercial reference

LT56069FS231EWHR

12-Digit UPC:

080083162468

Applications:

Lighting

Catalog Number:

LT56069FS231EWHR

Color Temperature:

3500 K

Country of Origin:

China

ERP_productname:

MTLX LT56069FS231EWHR 6" 10W LED RETRO 27/30/35K 600LM

Family Brand Name:

Cooper Lighting Solutions

Heights:

8-3/4 Inch

Length:

7.563 Inch

Lumens:

600 Lumen

Mounting Type:

Recessed

Sub Brand:

Market Pro

Type:

5/6" LT4 LED Retrofit Trim Kit

Voltage:

120 Volt

Wattage:

6.97 Watt

Widths:

3.625 in

SoneparProductId:

SKU_US_226450126

The Halo LT56 combines the energy savings, long life and sustainability of LED in an easy to install retrofit baffle trim kit. The field selectable 3 CCT color temperatures let you custmoize your lighting. Friction blades hold the trim tight to ceiling, use in new construction, remodeler and retrofit installation in Halo and other compatible 5 in. or 6 in. recessed housings. The diffuse lens provides shielding to the source and wet location listing, suitable for use in showers or in outdoor covered ceiling applications. Also conforms with NFPA requirements for closet use. Integral driver provides 120-Volt phase cut dimming, an inline connector provides power using a medium base socket adapter provided or connect directly to the mating connector in the LED housings. Ships with a gasket and makes any housing airtight for added energy savings and code compliance. Features: 7.563 IN Length 3.625 IN Width 8.75 IN Height; Available with smooth splay or baffle trim; Up to 670 delivered lumens, 90+ CRI; Achieving L70 at 35,000 hours in IC and non-IC applications; Plastic construction is impact resistant and non-corrosive; Retrofits into: Halo 5. or 6. new construction or remodel housings; 3-color selectable CCT: 2700K, 3000K, 3500K or 3000K, 4000K, 5000K; 120V input, dimmable down to 10% with select phase cut dimmers; Dead front, air-tite, wet location listed, IC rated; Five-Year limited warranty
