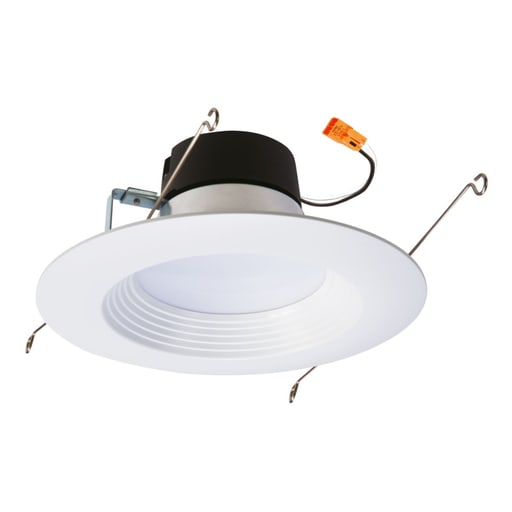

Cooper Lighting - Halo LT56069FS351EWHR 5/6-inch LED retrofit module, baffle trim,600 Lumens,90 CRI min, 3000K, 4000K, 5000K selectable CCT,120V,Matte White Flange

CopyCopy
Cooper Lighting - Halo LT56069FS351EWHR 5/6-inch LED retrofit module, baffle trim,600 Lumens,90 CRI min, 3000K, 4000K, 5000K selectable CCT,120V,Matte White Flange

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083162482

  • Applications - Lighting

  • Catalog Number - LT56069FS351EWHR

  • Color Temperature - 5000 K

  • Country of Origin - China

Packaging

  • 1 ea

EAN

00080083162482

Part #

193277

Catalog #

LT56069FS351EWHR

Commercial reference

LT56069FS351EWHR

12-Digit UPC:

080083162482

Applications:

Lighting

Catalog Number:

LT56069FS351EWHR

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

HALO LT56069FS351EWHR LT56 RETROFIT, 600LM, 30-50K, MW, BAFFLE

Family Brand Name:

Cooper Lighting Solutions

Heights:

8.66 Inch

Length:

7.48 Inch

Lumens:

600 Lumen

Mounting Type:

Recessed

Sub Brand:

Market Pro

Type:

5/6" LT4 LED Retrofit Trim Kit

Voltage:

120 Volt

Wattage:

6.97 Watt

Widths:

3.54 in

SoneparProductId:

SKU_US_230225507

The Halo LT56 combines the energy savings, long life and sustainability of LED in an easy to install retrofit baffle trim kit. The field selectable 3 CCT color temperatures let you custmoize your lighting. Friction blades hold the trim tight to ceiling, use in new construction, remodeler and retrofit installation in Halo and other compatible 5 in. or 6 in. recessed housings. The diffuse lens provides shielding to the source and wet location listing, suitable for use in showers or in outdoor covered ceiling applications. Also conforms with NFPA requirements for closet use. Integral driver provides 120-Volt phase cut dimming, an inline connector provides power using a medium base socket adapter provided or connect directly to the mating connector in the LED housings. Ships with a gasket and makes any housing airtight for added energy savings and code compliance. Features: 7.48 IN Length 3.54 IN Width 8.66 IN Height; Available with smooth splay or baffle trim; Up to 670 delivered lumens, 90+ CRI; Achieving L70 at 35,000 hours in IC and non-IC applications; Plastic construction is impact resistant and non-corrosive; Retrofits into: Halo 5. or 6. new construction or remodel housings; 3-color selectable CCT: 2700K, 3000K, 3500K or 3000K, 4000K, 5000K; 120V input, dimmable down to 10% with select phase cut dimmers; Dead front, air-tite, wet location listed, IC rated; Five-Year limited warranty
