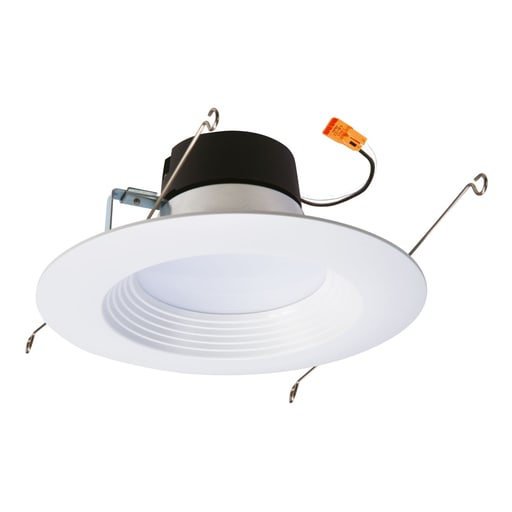

Cooper Lighting - Halo LT560WH12930 5"/6" Retrofit Baffle-Trim LED Module, 90CRI, 3000 K, Matte White

CopyCopy
Cooper Lighting - Halo LT560WH12930 5"/6" Retrofit Baffle-Trim LED Module, 90CRI, 3000 K, Matte White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083798681

  • Amperage - 0.0992 Amp

  • Aperture Size - 5/6 in

  • Applications - Lighting

  • Catalog Number - LT560WH12930

Packaging

  • 1 ea

EAN

00080083798681

Part #

223952

Catalog #

LT560WH12930

Commercial reference

LT560WH12930

12-Digit UPC:

080083798681

Amperage:

0.0992 Amp

Aperture Size:

5/6 in

Applications:

Lighting

Catalog Number:

LT560WH12930

Color Rendering Index:

90

Color Temperature:

3000 K

Country of Origin:

China

ERP_productname:

HALO LT560WH12930 LT56 RETROFIT BAFFLE 90CRI 3000K 1200 LM

Family Brand Name:

Halo

Finish:

White

Heights:

8.65 Inch

Length:

3-3/4 Inch

Lumens:

1,140 Lumen

Mounting Type:

Recessed

Sub Brand:

Market Pro

Type:

5/6" LT4 LED Retrofit Trim Kit

Voltage:

120 Volt

Wattage:

12 Watt

Widths:

7.5 in

SoneparProductId:

SKU_US_191865137

The Halo® LT56 combines the energy savings, long life and sustainability of LED in an easy to install retrofit baffle trim kit. Dual-position torsion springs pull the trim tight to ceiling; use in new construction, remodeler and retrofit installation in Halo® and other compatible 5" and 6" recessed housings. The diffuse lens provides shielding to the source and wet location listing; suitable for use in showers or in outdoor covered ceiling applications. Also conforms with NFPA requirements for closet use. Integral driver provides 120 volt phase cut dimming, an inline connector provides power using a medium base socket adapter provided or connect directly to the mating connector in the LED housings. Ships with a gasket and makes any housing airtight for added energy savings and code compliance. Features: LED retrofit shallow lens downlight with baffle trim; Retrofits existing 5\" and 6\" housings with screwbase adapter included; Use 5\" and 6\" HALO and other new construction and remodel housings; 5 color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT, CRI: 90; Dead front, non-conductive construction, L70 at 35,000 hours; Torsion spring adjust for housing size, holds trim securely to ceiling; 120V, Phase dimming down to 10%, Lumens: up to 780, Up to 84 lm/W; Damp and wet location listed for showers and protected ceilings; Meets NFPA requirements for use in closets, AIR-TITE™
