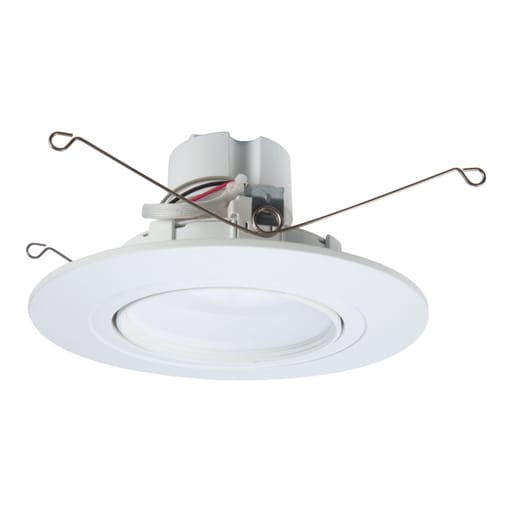

Cooper Lighting - Halo RA56069S1EWHR 5-Inch/6-Inch All-Purpose LED Retrofit Module, 600 lumens, 90CRI,White

CopyCopy
Cooper Lighting - Halo RA56069S1EWHR 5-Inch/6-Inch All-Purpose LED Retrofit Module, 600 lumens, 90CRI,White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083817863

  • Amperage - 0.065 mA at 120V

  • Applications - Lighting

  • Catalog Number - RA56069S1EWHR

  • Color Temperature - 5000 K

Packaging

  • 1 ea

EAN

00080083817863

Part #

107862

Catalog #

RA56069S1EWHR

Commercial reference

RA56069S1EWHR

12-Digit UPC:

080083817863

Amperage:

0.065 mA at 120V

Applications:

Lighting

Catalog Number:

RA56069S1EWHR

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

HALO RA56069S1EWHR ADJUSTABLE GIMBAL 600LU 90CRI SWITCHABLE COLOR TEMP 2700K 3000K 3500K 4000K OR 5000K

Family Brand Name:

Halo

Heights:

8 Inch

Length:

7.813 Inch

Lumens:

630 Lumen

Mounting Type:

Recessed

Sub Brand:

Market Pro

Type:

RA56 SeleCCTable

Voltage:

120 Volt

Wattage:

7 Watt

Widths:

3.813 in

SoneparProductId:

SKU_US_191799820

The RA LED is a complete adjustable gimbal LED module for 4-inch and 5/6-inch aperture recessed downlights; suitable for new construction, remodel and retrofit installation. The RA adjustable gimbal offers 35. tilt and up to 360. rotation and is compatible with Leading Edge and Trailing Edge phase control dimmers. The modules are offered in Very Wide Flood (VWFL) and Narrow Flood (NFL) models. The modules are available in a choice of 2700K or 3000K or choose the gimbal with CCT selectable technology that allows the user to choose from a range of five color temperatures from 2700K to 5000K via a switch. Features: 7.813 IN Length 3.813 IN Width 8.0 IN Height; Adjustable gimbal offers 35-degree tilt and up to 360-degree rotation; Select from 5 CCTs via switch, 2700K, 3000K, 3500K, 4000K, 5000K CCT; 600 lumen series; Use with 5\" or 6\" housings with screwbase adapter included; Dimmable down to 5%; Dual-mount: Torsion Spring and Push-N-Twist clip models; Damp location listed; ENERGY STAR® certified; LED connector is CA Title-24 high efficacy compliant and cULus Listed
