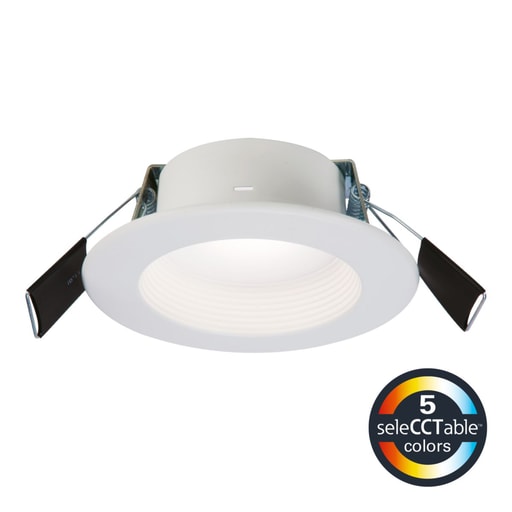

Cooper Lighting - Halo RL4069S1EWHDM 4" Retrofit Baffle-Trim LED Module, 600 Series, 90CRI, CCT Selectable, Direct Mount

CopyCopy
Cooper Lighting - Halo RL4069S1EWHDM 4" Retrofit Baffle-Trim LED Module, 600 Series, 90CRI, CCT Selectable, Direct Mount

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083858101

  • Amperage - 0.069 Amp

  • Applications - Lighting

  • Catalog Number - RL4069S1EWHDM

  • Color Rendering Index - 90

Packaging

  • 1 ea

EAN

00080083858101

Part #

166324

Catalog #

RL4069S1EWHDM

Commercial reference

RL4069S1EWHDM

12-Digit UPC:

080083858101

Amperage:

0.069 Amp

Applications:

Lighting

Catalog Number:

RL4069S1EWHDM

Color Rendering Index:

90

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

HALO RL4069S1EWHDM HALO RL4WH SELECT DM 90CRI 600LM LD

Family Brand Name:

Halo

Heights:

6-7/8 Inch

Length:

5-1/2 Inch

Lumens:

621 Lumen

Mounting Type:

Recessed

Sub Brand:

RL4-DM LED 4" Direct-Mount SeleCCTable?.? Downlight

Type:

RL4 LED

Voltage:

120 Volt

Wattage:

9 Watt

Widths:

4.375 in

SoneparProductId:

SKU_US_191859975

The RL4-DM is a 4-inch regressed LED lens downlight with remote driver / junction box suitable for new construction and remodel applications. Field selectable color temperature and high color rendering provide excellent color performance. Simplified installation in drywall or suspended ceilings eliminates recessed cans saving time and money. Installs from below the ceiling in shallow plenum height, can be used in direct contact with insulation and is airtight. Use for general area lighting in low to medium height ceilings where energy savings, long life and economy are required. Features: 5.5 IN Length 4.375 IN Width 6.875 IN Height; Field-selectable color temperatures LED downlight with baffle trim; Mounts into drywall ceiling/wall (no junction box or housing required); Can be installed in 1/2\" to 1-1/4\" thick ceilings; 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT; Wet location listed for showers and protected ceilings; Meets NFPA requirements for use in closets, AIR-TITE™; CA Title-24 high efficacy compliant, ENERGY STAR™ certified
