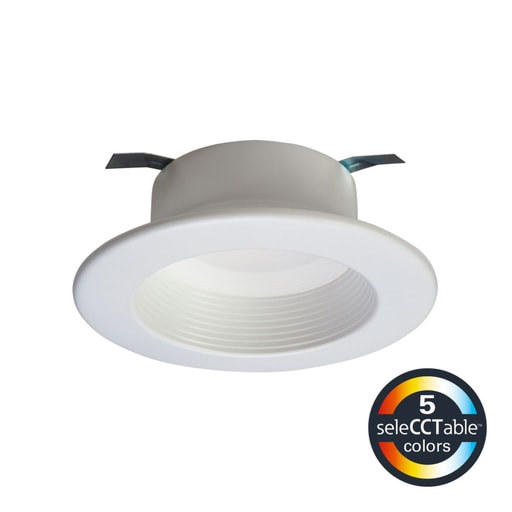

Cooper Lighting - Halo RL4069S1EWHR 4" Retrofit LED Module, 120V, 600 Lumens, 90CRI, Selectable CCT,Matte White

CopyCopy
Cooper Lighting - Halo RL4069S1EWHR 4" Retrofit LED Module, 120V, 600 Lumens, 90CRI, Selectable CCT,Matte White

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083818488

  • Applications - Lighting

  • Catalog Number - RL4069S1EWHR

  • Color Rendering Index - 90

  • Color Temperature - 5000 K

Packaging

  • 1 ea

EAN

00080083818488

Part #

122043

Catalog #

RL4069S1EWHR

Commercial reference

RL4069S1EWHR

12-Digit UPC:

080083818488

Applications:

Lighting

Catalog Number:

RL4069S1EWHR

Color Rendering Index:

90

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

HALO RL4069S1EWHR SELECTABLE 90CRI 600LM LED MODULE

Family Brand Name:

Halo

Heights:

5.313 Inch

Length:

5.313 Inch

Lumens:

1,006 Lumen

Mounting Type:

Retrofit Kit

Sub Brand:

RL4 LED 4" Retrofit SeleCCTable?.? Downlight

Type:

RL4 SeleCCTable and Dedicated

Voltage:

120 Volt

Wattage:

9 Watt

Widths:

2.75 in

SoneparProductId:

SKU_US_25192738

The Halo RL Series is a complete LED baffle-trim module for 3-inch, 4-inch or 5/6-inch aperture recessed downlights. Ideal for new construction, remodel and retrofit installation, the integral LED driver offers 120V dimming capability and the lens provides uniform illumination and a wet location listing. The modules are available in a choice of 2700K or 3000K or choose the baffle-trim modules with CCT selectable technology that allows the user to choose from a range of five color temperatures from 2700K to 5000K via a switch. Features: 5.313 IN Length 2.75 IN Width 5.313 IN Height; Field-selectable color temperatures LED downlight with baffle trim; Use with 4\" housings with screwbase adapter included; For use with 4\" HALO and other new construction and remodel housings; 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT; CRI: 90, L70 at 70,000 hours (70% lumen maintenance at 70,000 hours); Lumens: Up to 621 and 1,006, Friction blade mounting; 120V, Phase dimming down to 5%, AIR-TITE™, ENERGY STAR™ certified; Damp and wet location listed for showers and protected ceilings; Optional designer trims in Matte White, Satin Nickel, Tuscan Bronze
