Cooper Lighting - Halo RL56069S1EWHR-CA 5/6" Retrofit Baffle-Trim LED Module, 600 Series, 90CRI, CCT Selectable"

CopyCopy
Cooper Lighting - Halo RL56069S1EWHR-CA 5/6" Retrofit Baffle-Trim LED Module, 600 Series, 90CRI, CCT Selectable"

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083888146

  • Amperage - 0.15A at 120V

  • Applications - Lighting

  • Catalog Number - RL56069S1EWHR-CA

  • Color Rendering Index - 90

Packaging

  • 1 ea

EAN

00080083888146

Part #

238771

Catalog #

RL56069S1EWHR-CA

Commercial reference

RL56069S1EWHR-CA

12-Digit UPC:

080083888146

Amperage:

0.15A at 120V

Applications:

Lighting

Catalog Number:

RL56069S1EWHR-CA

Color Rendering Index:

90

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

APRO RL56069S1EWHR-CA HALO RL56WH SELECT 90CRI 600LM LD R-CA

Family Brand Name:

Halo

Heights:

8 Inch

Length:

7-1/2 Inch

Lumens:

1,200 Lumen

Mounting Type:

Recessed

Sub Brand:

RL56 LED 5"/6" Retrofit SeleCCTable?.? Downlight

Type:

RA56 SeleCCTable

Voltage:

120 Volt

Wattage:

7.6 Watt

Widths:

3.0 in

SoneparProductId:

SKU_US_192284683

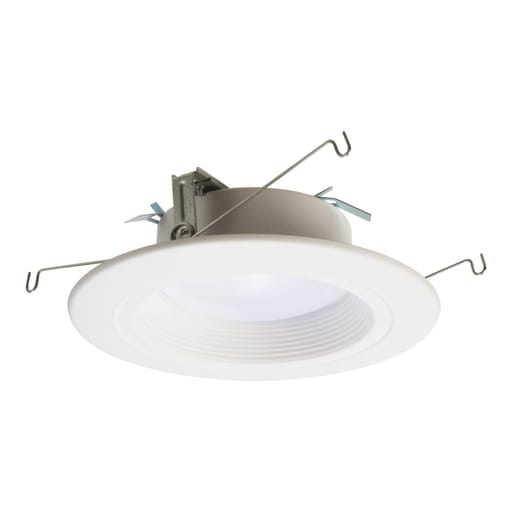

The Halo RL Series is a complete LED baffle-trim module for 3-inch, 4-inch or 5/6-inch aperture recessed downlights. Ideal for new construction, remodel and retrofit installation, the integral LED driver offers 120V dimming capability and the lens provides uniform illumination and a wet location listing. The modules are available in a choice of 2700K or 3000K or choose the baffle-trim modules with CCT selectable technology that allows the user to choose from a range of five color temperatures from 2700K to 5000K via a switch. Features: 7.5 IN Length 3.0 IN Width 8.0 IN Height; Field-selectable color temperatures LED downlight with baffle trim; Use with 5\" and 6\" housings with screwbase adapter included; Use with 5\" or 6\" HALO and other new construction and remodel housings; 5 selectable color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K CCT; 120V, Phase dimming down to 5%, AIR-TITE™, ENERGY STAR™ certified; Damp and wet location listed for showers and protected ceilings; Optional designer trims in Matte White, Satin Nickel, Tuscan Bronze
