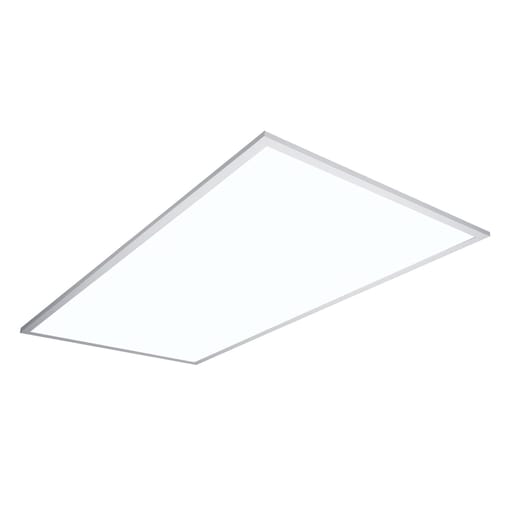

Cooper Lighting - Metalux 14FP4235C 1x4 LED recessed flat panel, 4200 Lumen, 3500K, 80 CRI, 0-10V continuous dimming driver

CopyCopy
Cooper Lighting - Metalux 14FP4235C 1x4 LED recessed flat panel, 4200 Lumen, 3500K, 80 CRI, 0-10V continuous dimming driver

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083801800

  • Amperage - 0.141 (at 277V)

  • Applications - Lighting

  • Catalog Number - 14FP4235C

  • Color Rendering Index - 80

Packaging

  • 1 ea

EAN

00080083833467

Part #

466425

Catalog #

14FP4235C

Commercial reference

14FP4235C

12-Digit UPC:

080083801800

Amperage:

0.141 (at 277V)

Applications:

Lighting

Catalog Number:

14FP4235C

Color Rendering Index:

80

Color Temperature:

3500 K

Country of Origin:

China

ERP_productname:

CLI 14FP4235C 38.5W LIGHT FIXTURE

Family Brand Name:

Metalux

Finish:

White

Heights:

3 Inch

Length:

50-1/2 Inch

Lumens:

4,389 Lumen

Mounting Type:

Recessed

Sub Brand:

FP Panel

Type:

Recessed

Voltage:

277 Volt

Wattage:

39 Watt

Widths:

15.0 in

SoneparProductId:

EATON LIGHTING INDOOR/OUTDOOR

FPanel LED panel series provides premium performance and pleasing aesthetics.The luminaire is optimized for shallow plenum grid ceilings but may also besurface or the 2x2 can be suspension mounted. Developed using Eaton.s latest generation of solid-state components and electronic driver technologies, these panels are ideal for both new construction and renovation of existing fluorescent troffers. The panel.s refined visual optics, superior acrylic light guide and integrated grid retention clips provide the features needed for installation, speed and flexibility. LED FPanels are an excellent lighting solution for commercial office spaces, schools, healthcare facilities and retail merchandising areas. Features: Ultra thin 1.75\" height fits shallow plenums with room to spare; Standard and High Lumen models up to 7000 lumens; Up to 124 lumens per watt delivering up to 53% energy savings; Stock CCT available in 3500, 4000 and 5000K; 80 CRI standard with 90 CRI option; UNV driver and 0-10V dimming standard; Lumen maintenance L73, 60K hours; Superior optics ensure long life, smooth corner to corner illumination; Easy to install - wire and wire nuts included
