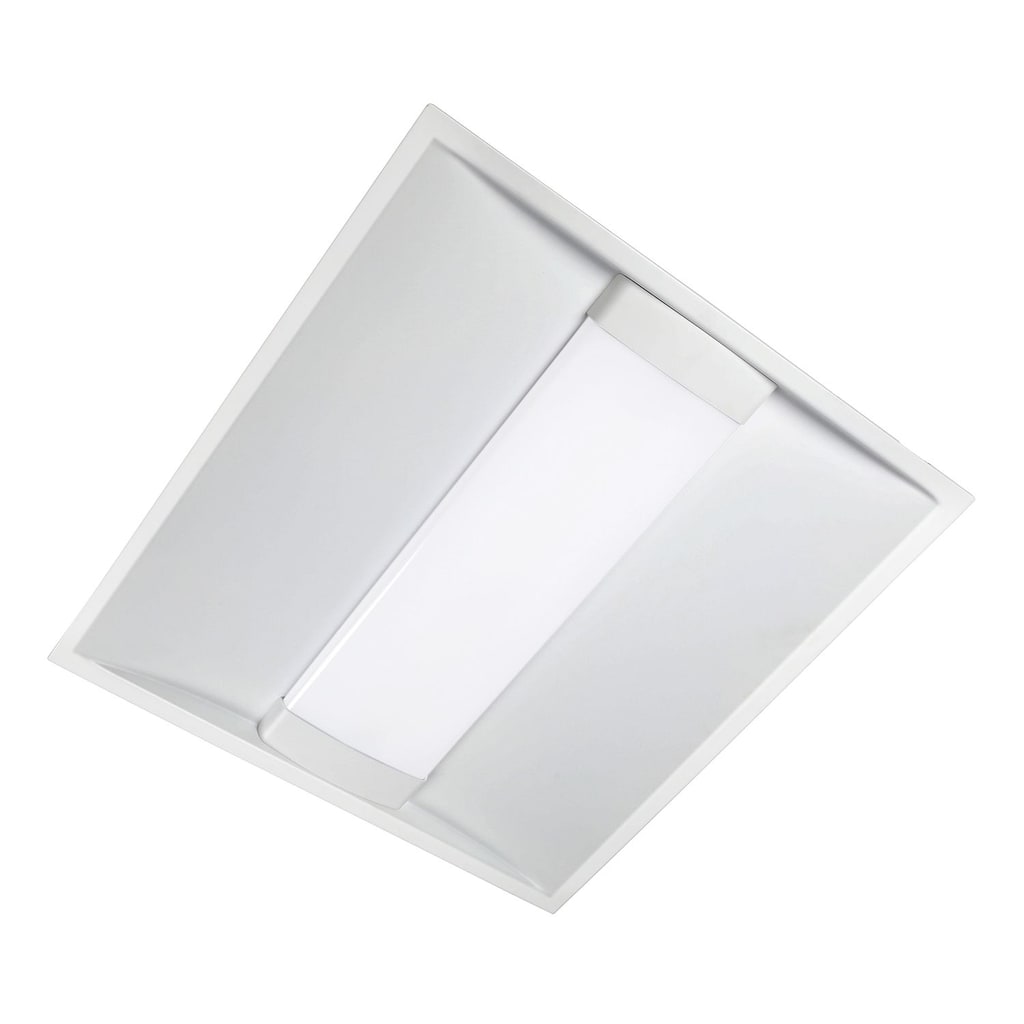

Cooper Lighting - Metalux 22ARS-L3C3-HO-UNV 2'x2' LED Achieva® Selectable Center Basket Troffer, 3500/4000/5000K, Selectable Lumens, 80 CRI, 0-10V Dimming, 120-277V, White Finish

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083282203

  • Amperage - 0.16 Amp

  • Applications - Lighting

  • Catalog Number - 22ARS-L3C3-HO-UNV

  • Color Temperature - 5000 K

Packaging

  • 1 ea

EAN

00080083282203

Part #

417866

Catalog #

22ARS-L3C3-HO-UNV

Commercial reference

22ARS-L3C3-HO-UNV

12-Digit UPC:

080083282203

Amperage:

0.16 Amp

Applications:

Lighting

Catalog Number:

22ARS-L3C3-HO-UNV

Color Temperature:

5000 K

Country of Origin:

China

ERP_productname:

APRO 22ARS-L3C3-HO-UNV 2X2 3LM 3CCT TROFR 80CRI HO RD UNV 10V

Family Brand Name:

Metalux

Heights:

3.4 Inch

Length:

26.4 Inch

Lumens:

6,204 Lumen

Mounting Type:

Recessed,Surface

Sub Brand:

Achieva?.? Recessed Selectable

Type:

Recessed

Voltage:

227 Volt

Wattage:

46.8 Watt

Widths:

26.4 in

SoneparProductId:

SKU_US_474543159

Achieva 2x2 Selectable Lumens and CCT Troffer, Ultra Slim, 0-10V dimming to 5% standard with 120-277V UNV, HO Features: Design friendly with (3) selectable color temperatures and (3) selectable lumen packages; (3) Selectable CCT in 3500K, 4000K, 5000K in 80+ or 90 CRI; (3) Selectable lumens in standard or HO options up to 8,000; Ultra slim 1.5\" design for shallow plenum applications; Available with round or square ribbed frosted lens; Up to 146 LPW for increased energy savings and reduced watts per square foot; DLC Compliant and UL Damp rated with a 5-year warranty; 0-10V Dimming to 5% with 120-277V (UNV) and 120-347V (NUV); Ideal for replacing 2-4 lamp fluorescent troffers
