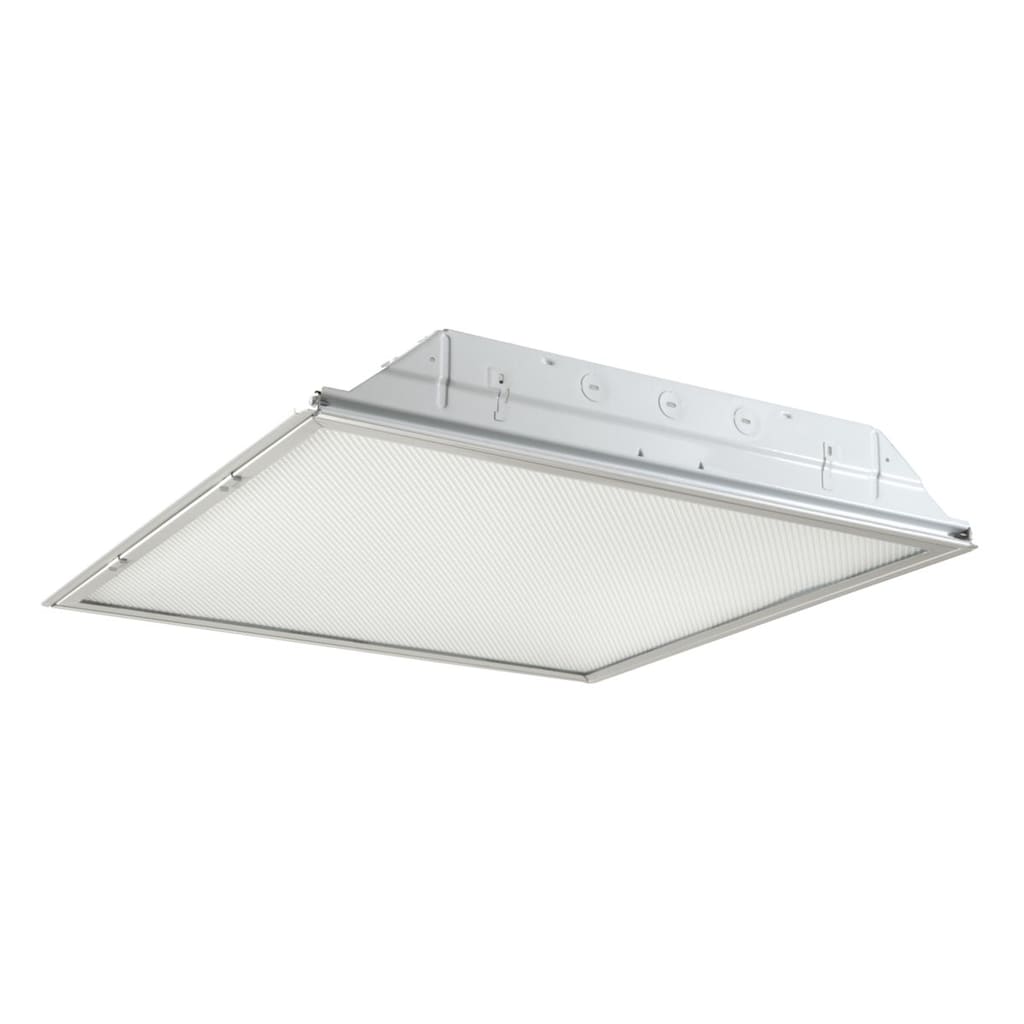

Cooper Lighting - Metalux 22GR-LD5-32-F1-UNV-L835-CD1-U GR Series LED Recessed Troffer, 2 x 2, 3200 Lumen, 3500K, 0 to 10V Dim Driver

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 080083798605

  • Amperage - 0.119 at (277V)

  • Applications - For Lighting

  • Catalog Number - 22GR-LD5-32-F1-UNV-L835-CD1-U

  • Color Temperature - 3500 K

Packaging

  • 1 ea

EAN

00080083798605

Part #

169939

Catalog #

22GR-LD5-32-F1-UNV-L835-CD1-U

Commercial reference

22GR-LD5-32-F1-UNV-L835-CD1-U

12-Digit UPC:

080083798605

Amperage:

0.119 at (277V)

Applications:

For Lighting

Catalog Number:

22GR-LD5-32-F1-UNV-L835-CD1-U

Color Temperature:

3500 K

Country of Origin:

Mexico

ERP_productname:

MTLX 22GR-LD5-32-F1-UNV-L835-CD1-U

Family Brand Name:

Eaton

Heights:

24-1/8 Inch

Length:

24-3/4 Inch

Lumens:

3,200 Lumen

Material:

Steel

Mounting Type:

Recessed

Sub Brand:

GRLED Series

Type:

Static, Blank

Voltage:

120 Volt

Wattage:

29.9 Watt

Widths:

3.938 in

SoneparProductId:

SKU_US_181270971

The GRLED is a ideal balance between leading-edge LED performance and value based lighting. This new competitive LED lensed troffer series is built and designed for general purpose lighting applications. With multiple LED lens options, GRLED can provide the optimal spacing, energy efficiency and optical control. Additionally, GRLED leverages our shallow, low profile housing so it is compatible with even highly restrictive plenums and today.s most common ceiling systems. GRLED is a great choice for commercial offices, schools, hospitals, retail merchandising and many other applications. Certain airborne contaminants can diminish the integrity of acrylic components. Refer to the Material Compatibility tables for additional information. Features: 24.75 IN Length 3.938 IN Width 24.125 IN Height; Available in 2' x 4', 2' x 2' and 1' x 4'; Up to 140LPW for maximum energy savings versus fluorescent troffers; Correlated Color Temperatures 3000K, 3500K, 4000K and 5000K; Multiple lumen packages for each configuration; Class 2, Constant driver with standard 0-10v dimming; CRI Greater Than 80; Lumen maintenance L70 at 193,000 hours/TM21 Rated L90 at 60,000 hours; DLC and DLC Premium qualified; Five-year warranty
