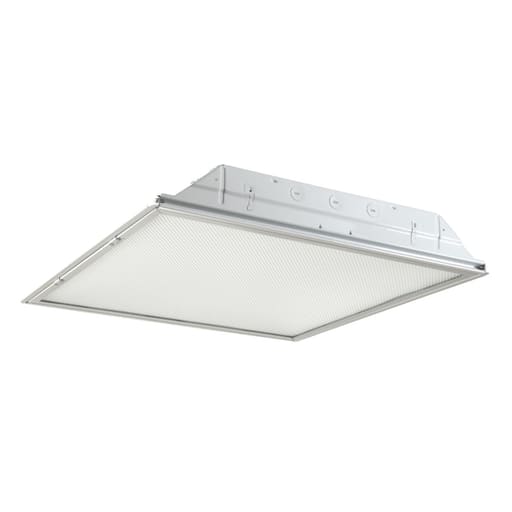

Cooper Lighting - Metalux 22GR3240D 2x2 A LENS LED Troffer 3200 Lumen 4000K 0-10V DIM

CopyCopy
Cooper Lighting - Metalux 22GR3240D 2x2 A LENS LED Troffer 3200 Lumen 4000K 0-10V DIM

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 800837554796

  • Amperage - 0.101 at 277V

  • Applications - Lighting

  • Catalog Number - 22GR3240D

  • Color Temperature - 3500 K

Packaging

  • 1 ea

EAN

00080083755479

Part #

135106

Catalog #

22GR3240D

Commercial reference

22GR3240D

12-Digit UPC:

800837554796

Amperage:

0.101 at 277V

Applications:

Lighting

Catalog Number:

22GR3240D

Color Temperature:

3500 K

Country of Origin:

Mexico

ERP_productname:

MTLX 22GR3240D 2X2 LED TROFFER 40K

Family Brand Name:

Metalux

Heights:

3-1/2 Inch

Length:

24-1/2 Inch

Lumens:

3,200 Lumen

Mounting Type:

Surface

Sub Brand:

Metalux AP - GR

Type:

Recessed Static

Voltage:

277 Volt

Wattage:

28 Watt

Widths:

24.3 in

SoneparProductId:

SKU_US_191776554

GR is a recessed lensed LED troffer series which offers a high quality luminaire dedicated with the latest solid state lighting and electronic driver technology for optimal performance and energy efficiency. The GR is compatible with all of today.s popular ceiling systems and is available with a number of shielding options and accessories for application versatility.The GR series features efficiency, quality and performance. The series is an excellent choice for commercial office spaces, schools, hospitals or retail merchandising areas. Features: 25.25 IN Length 24.25 IN Width 3.75 IN Height; 2 x 4 and 2 x 2 product configuration; A12, prismatic lens with spring latch door frame; UNV (120V-277V) voltage, 0-10V dimmable or non-dimmable driver options; Color Temperature (CCT): 3500K, 4000K; Ideal for recessed mounting; cULus 1598 listed for damp locations; Complies with IESNA LM-79 test standards; Five year comprehensive fixture warranty
