Cooper Wiring Device Arrow/Eagle - CWD 1877W-BOX RECP SINGLE 20A 125V 2P3W SWIRE WH
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 032664311703
Amperage - 20 Amp
Catalog Number - 1877W-BOX
Color - White
Conductor Size - 14-10 AWG
Packaging
1 ea
EAN
00032664311703
Part #
280507
Catalog #
1877W-BOX
Commercial reference
1877W-BOX
12-Digit UPC:
032664311703
Amperage:
20 Amp
Catalog Number:
1877W-BOX
Color:
White
Conductor Size:
14-10 AWG
ERP_productname:
CWD 1877W-BOX RECP SINGLE 20A 125V 2P3W SWIRE WH
Family Brand Name:
Eaton
Grade:
Commercial
Heights:
4.19 Inch
Length:
1.31 Inch
Material:
Nylon
Mounting Type:
Flush
NEMA:
5-20R
Number of Poles:
2-2 Pole
Number of Wires:
3 Wire
Type:
Receptacle
Voltage:
125 Volt
Widths:
.87 in
Wire Size:
14-10 AWG
SoneparProductId:
SKU_US_174227017

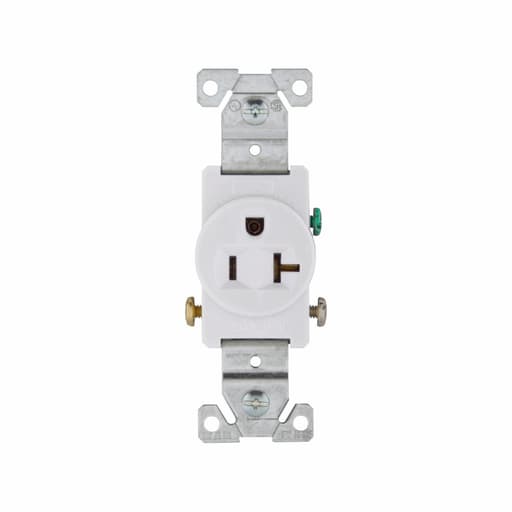

Eaton commercial specification grade single receptacle, #14-10 AWG, 20A, Commercial, Flush, 125V, Side wire, White, Brass, Nylon face, PVC bottom, 5-20R, Single, Screw, PVC, ED Box Certifications: cULus Listed; NOM; Federal Specification Classification 6233 01
