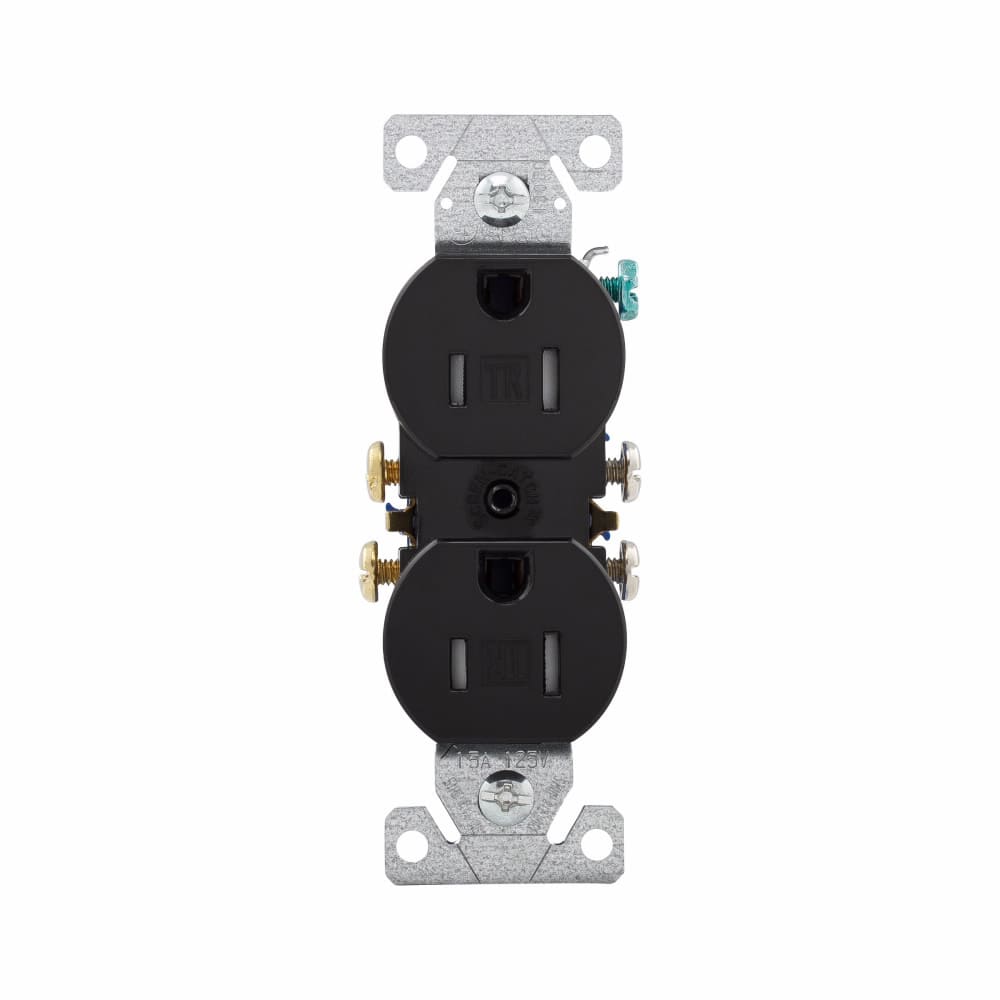

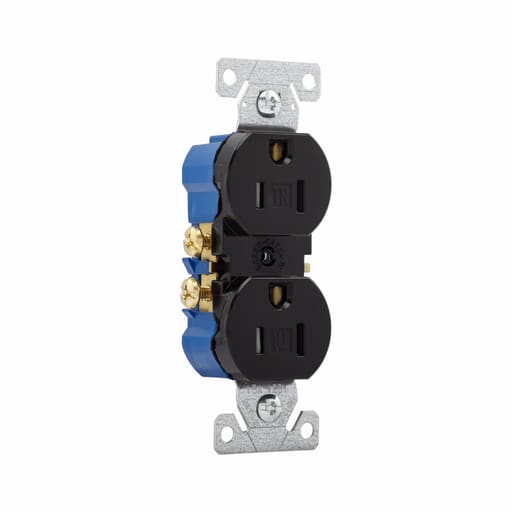

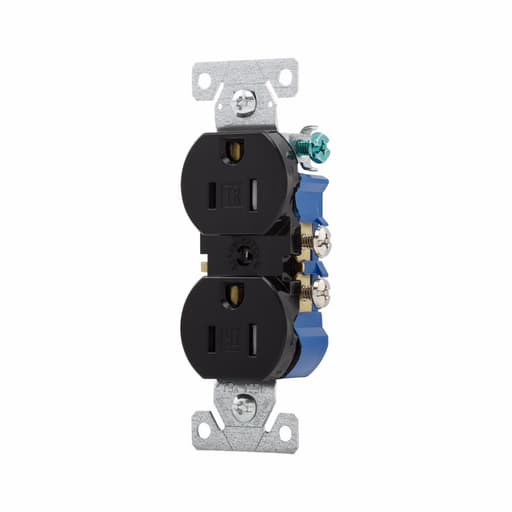

Cooper Wiring Device Arrow/Eagle - CWD TR270BK RECP TR DUPLEX 15A 125V 2P3W STR BK
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 032664667299
Amperage - 15 Amp
Catalog Number - TR270BK
Color - Black
Conductor Size - 14-12 AWG
Packaging
1 ea
EAN
00032664667299
Part #
280593
Catalog #
TR270BK
Commercial reference
TR270BK
12-Digit UPC:
032664667299
Amperage:
15 Amp
Catalog Number:
TR270BK
Color:
Black
Conductor Size:
14-12 AWG
ERP_productname:
CWD TR270BK RECP TR DUPLEX 15A 125V 2P3W STR BK
Family Brand Name:
Cooper Industries, LLC
Grade:
Standard
Heights:
4 Inch
Length:
1.24 Inch
Material:
Thermoplastic
Number of Poles:
2 Pole
Number of Wires:
3 Wire
Type:
Tamper-Resistant
Voltage:
125 Volt
Widths:
.79 in
SoneparProductId:
SKU_US_181008715
Standard grade tamper resistant duplex receptacle with side and push wire. High impact-resistant thermoplastic face and back body eliminates breakage. Double-wipe ground contacts ensure long-term ground retention. Easy access split circuit break-off tab. Tri-combo screws accept Slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out and ready for wiring. Side wire terminals accept up to 10 AWG solid wire. Push-in terminals accept 14 AWG solid wire. Patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations.
