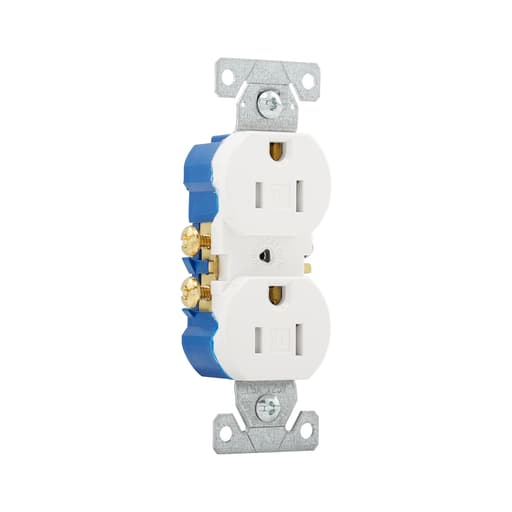

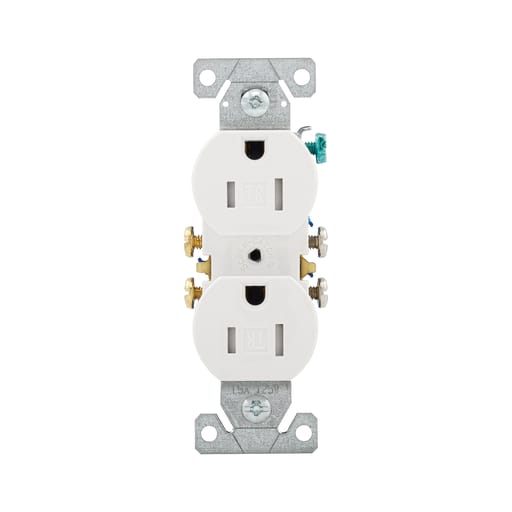

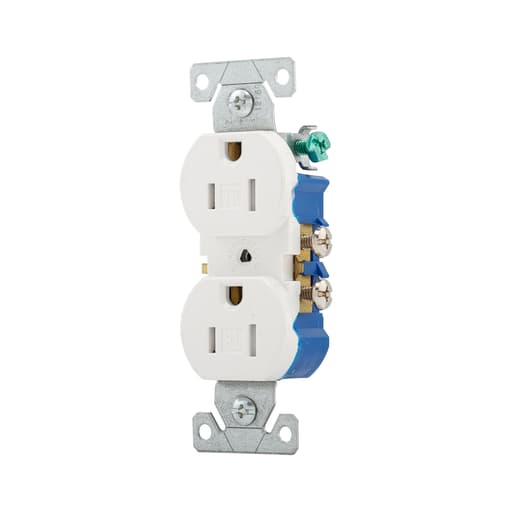

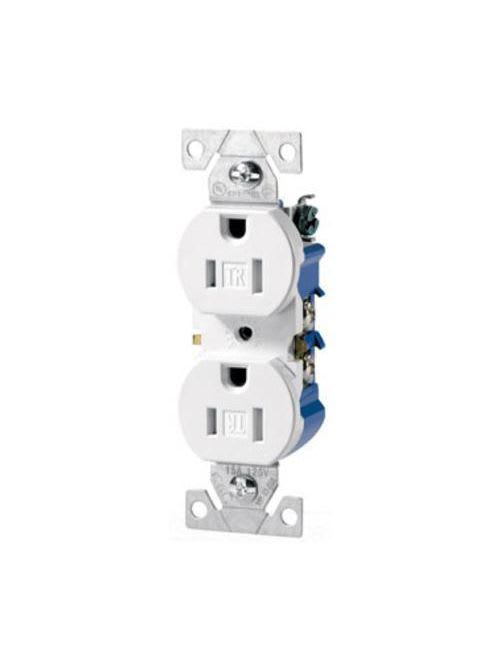

Cooper Wiring Device Arrow/Eagle - Eaton TR270W Duplex Receptacle, Tamper Resistant, 15A 125V 2P3W - White

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 032664666537

  • Amperage - 15 Amp

  • Catalog Number - TR270W

  • Color - White

  • Conductor Size - 14-10 AWG

Packaging

  • 1 ea

EAN

Part #

280539

Catalog #

TR270W

Commercial reference

TR270W

12-Digit UPC:

032664666537

Amperage:

15 Amp

Catalog Number:

TR270W

Color:

White

Conductor Size:

14-10 AWG

ERP_productname:

CWD TR270W RECP TR DUPLEX 15A 125V 2P3W STR WH

Family Brand Name:

Eaton

Grade:

Residential

Heights:

4 Inch

Length:

1.24 Inch

Material:

Thermoplastic

Mounting Type:

Flush

Number of Poles:

2 Pole

Number of Wires:

3 Wire

Type:

Tamper-Resistant, Standard

Voltage:

125 Volt

Widths:

.79 in

Wire Size:

14-10 AWG

SoneparProductId:

SKU_US_126472899

Tamper resistant receptacles provide compliance with 2014 NEC® Article 406.12 which states that all 15A and 20A, 125V/AC receptacles installed in dwelling units must be tamper resistant. Tamper and weather resistant receptacles provide both tamper resistant safety and ensure weather resistance in wet and damp outdoor locations. Longer, wider strap provides 40% more contact area to wall board, virtually eliminating floating installations. Patented built-in wire stripper for 14 and 12 AWG wire to speed installation. Push-in terminals accept 14 AWG solid wire for quick installation. Patented built-in wire looper for pre-looping. High impact-resistant thermoplastic face and back body eliminates breakage. Double-wipe ground contacts ensure long-term ground retention. Easy access split circuit break-off tab. Tri-combo screws accept slotted, Phillips and Robertson-head tools for installation flexibility. Terminal screws backed out and ready for wiring. Side wire terminals accept up to 10 AWG solid wire.
