Current by GE - HBA UVPPHD UNV POWER PACK LATCH AUT

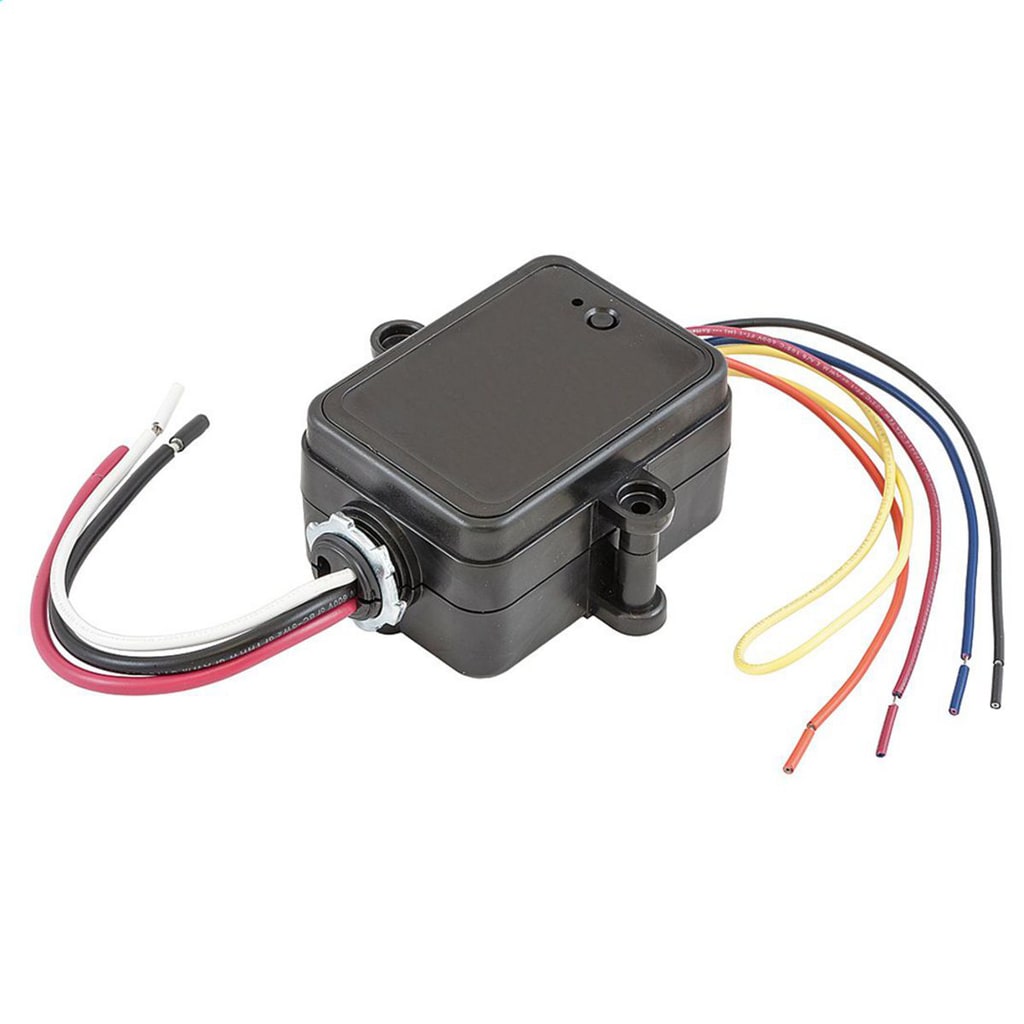

The Universal Voltage Power Pack (UVPPHD) is a self-contained transformer and mechanical latching relay designed for low-voltage 24VDC occupancy sensors. The power pack supports and automatically detects the line-voltage input within the 100-277VAC range. This eliminates the need for voltage-specific power packs. The Universal Voltage Power Pack with optional Manual ON/OFF control provides a unique solution for lighting applications where users require both manual ON/OFF control as well as automatic OFF control. Power packs are capable of switching 20A loads and feature Zero Arc Point Switching, minimizing relay-contact wear from high inrush loads. A single power pack can power either 6 sensors. The power packs are plenum rated and easily mount inside or outside of a junction box or inside a fixture. Features: Robust latching relay provides unsurpassed and unrestricted performance; Universal voltage (100-277VAC; 50/60Hz); Automatic voltage detection; Electrical load switching capability: maximum of 20 Amps; Regulated 24VDC current; 250mA output; Zero Arc Point Switching; Plenum rated; Mounts: inside or outside a junction box inside a fixture; UL and cUL listed; Five-year limited warranty; Low voltage device: 24 VDC; Auto or Manual ON operation; Powers up to six low voltage sensors
