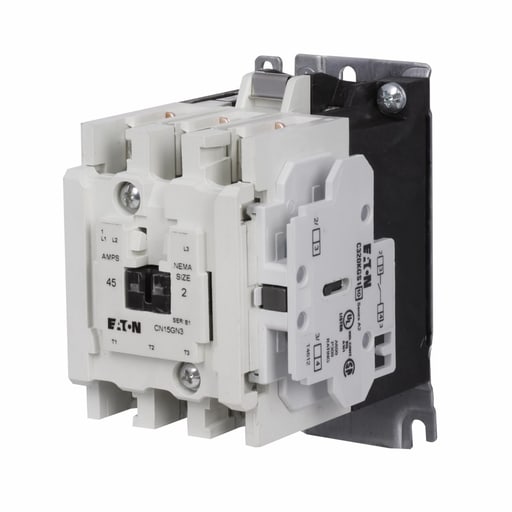

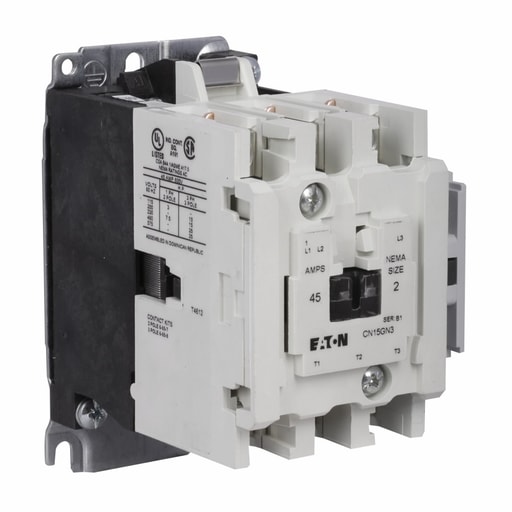

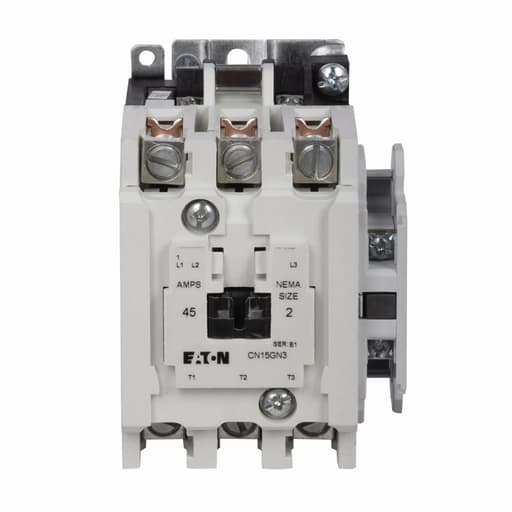

Cutler-Hammer / Eaton - Eaton CN15GN3AB NEMA Freedom Series Non-Reversing Contactor
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782113973555
Amperage - 45 Amp
Applications - Commercial, Institutional Buildings, Structures
Catalog Number - CN15GN3AB
ERP_productname - CUT CN15GN3AB NEMA FREEDOM SERIES NON-REVERSING CONTACTOR
Packaging
1 ea
EAN
00782113973555
Part #
165225
Catalog #
CN15GN3AB
Commercial reference
CN15GN3AB
12-Digit UPC:
782113973555
Amperage:
45 Amp
Applications:
Commercial, Institutional Buildings, Structures
Catalog Number:
CN15GN3AB
ERP_productname:
CUT CN15GN3AB NEMA FREEDOM SERIES NON-REVERSING CONTACTOR
Family Brand Name:
Eaton
Heights:
5.05 Inch
Length:
4.44 Inch
Number of Phases:
1,3 Phase
Number of Poles:
3 Pole
Size:
2 in
Type:
Non-Reversing
Voltage:
120 Volt
SoneparProductId:
SKU_US_59089890
Eaton Freedom NEMA motor control contactor, NEMA Freedom Series Non-Reversing contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 120V/60 Hz, 45A, Four-pole, Size 2
