Cutler-Hammer / Eaton - Eaton Electrical AN19KN0A5E100 110/120 VAC 2 to 100 Amp 1/3-Phase 3-Pole NEMA 3 Non-Reversing Starter
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786685415529
Amperage - 90 Amp
Applications - Electrical Assemblies, Panels and EOEMs
Catalog Number - AN19KN0A5E100
Coil Voltage - 120/60 or 110/50
Packaging
1 ea
EAN
00786685415529
Part #
282095
Catalog #
AN19KN0A5E100
Commercial reference
AN19KN0A5E100
12-Digit UPC:
786685415529
Amperage:
90 Amp
Applications:
Electrical Assemblies, Panels and EOEMs
Catalog Number:
AN19KN0A5E100
Coil Voltage:
120/60 or 110/50
ERP_productname:
CUT AN19KN0A5E100 FDM STR FVNR SZ3 120V C440-ST 20-100A
Enclosure Material:
Stainless Steel
Family Brand Name:
Eaton
Heights:
11.4 Inch
Length:
5.92 Inch
Mounting Type:
Horizontal
NEMA Size:
3
Size:
3
Type:
Non-Reversing
SoneparProductId:
SKU_US_58073995

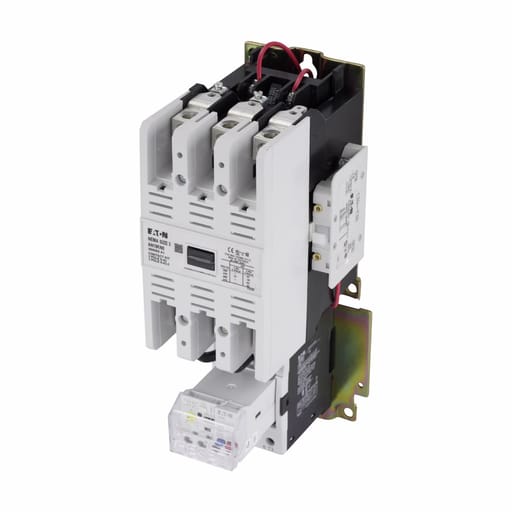

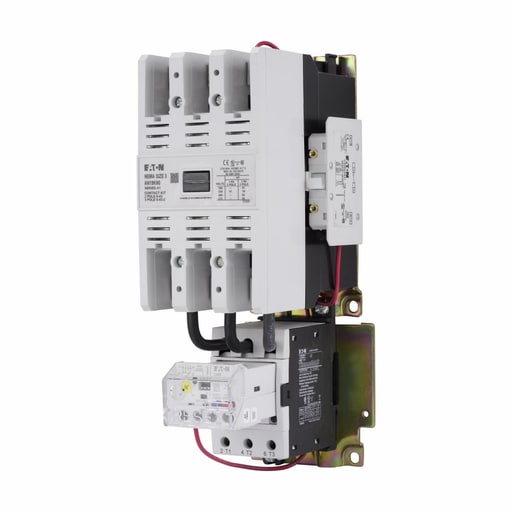

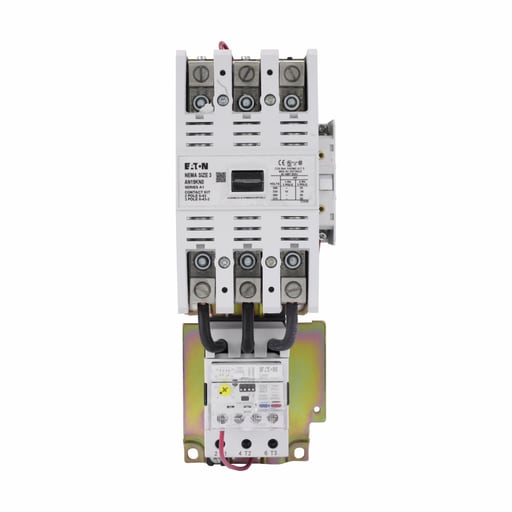

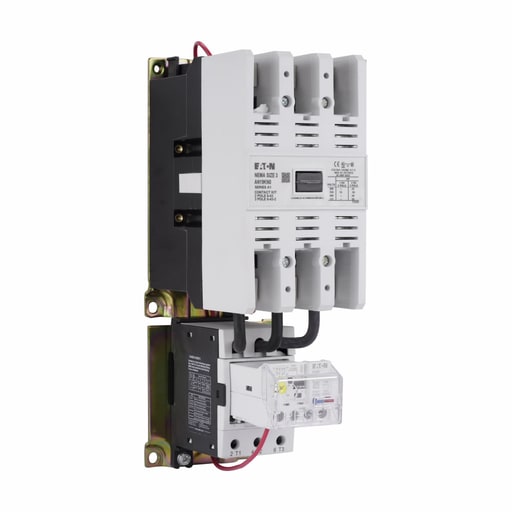

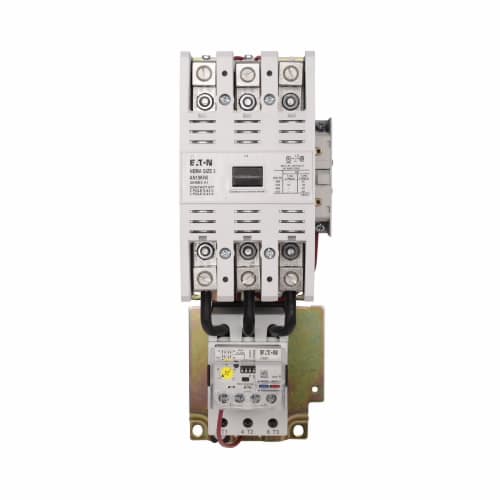

Eaton Freedom NEMA Starter, Full voltage non-reversing, C440 electronic overload relay, NEMA Size 3 open enclosure - 90 A, Horizontal mounting, 120/60 or 110/50 coil voltage, C440 standard feature set - 20.100 A
