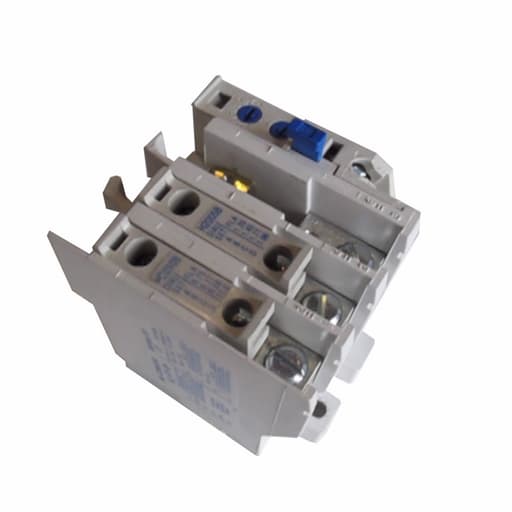

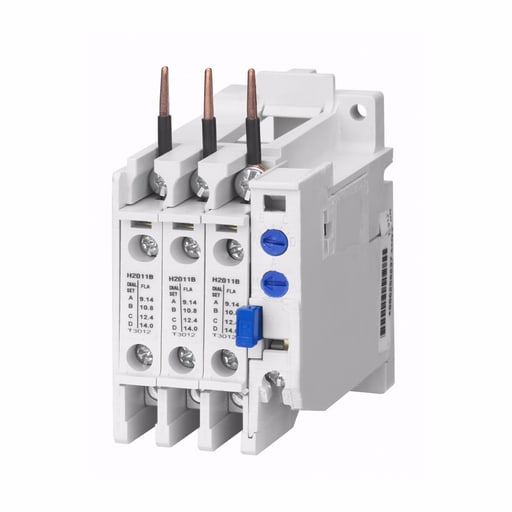

Cutler-Hammer / Eaton - Eaton Electrical C306DN3B 600 VAC 32 Amp 3-Pole 1NO 1NC Din Rail Mount Load Lug Terminal Thermal Bi-Metallic Overload Relay
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782113973234
Amperage - 20-39 Amp
Applications - For Overload Protection Upto 144 A
Catalog Number - C306DN3B
Conductor Size - 14-6 AWG
Packaging
1 ea
EAN
00782113973234
Part #
198736
Catalog #
C306DN3B
Commercial reference
C306DN3B
12-Digit UPC:
782113973234
Amperage:
20-39 Amp
Applications:
For Overload Protection Upto 144 A
Catalog Number:
C306DN3B
Conductor Size:
14-6 AWG
ERP_productname:
CUT C306DN3B OVERLOAD RELAY
Enclosure Type:
NEMA Size 00, 0
Family Brand Name:
Eaton
Frame:
NEMA Size 00, 0, IEC Size A-F
Mounting Type:
DIN Rail, Panel
Number of Poles:
3 Pole
Trip Type:
Thermal
Type:
Trip Free Mechanism, Automatic/Manual Reset
Voltage:
600 VAC
Wire Size:
14-6 AWG Solid or Stranded
SoneparProductId:
SKU_US_59104640
