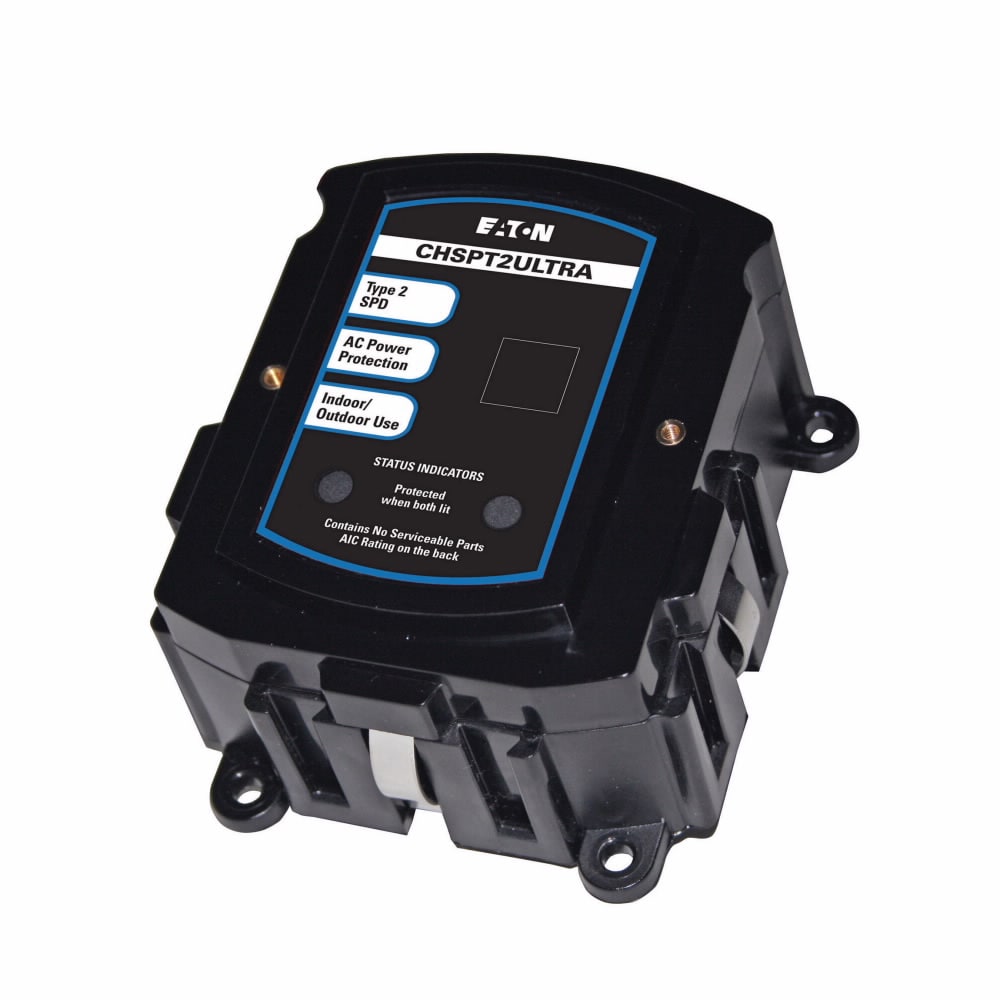

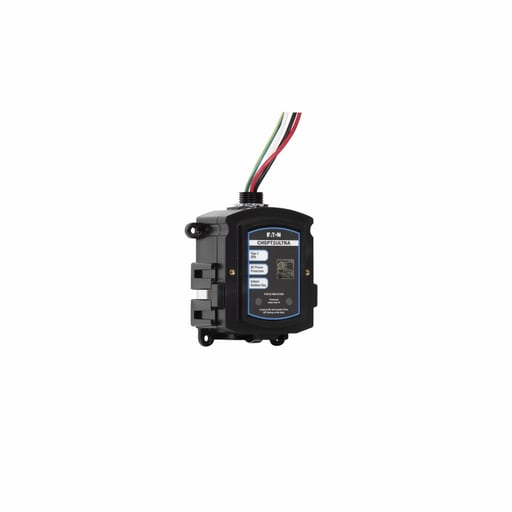

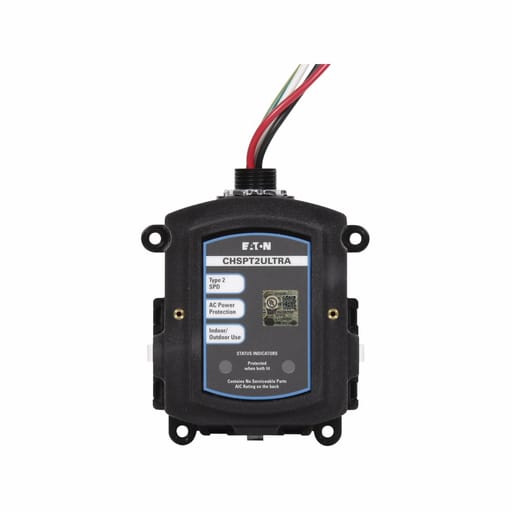

Cutler-Hammer / Eaton - Eaton Electrical CHSPT2ULTRA 120/240 VAC 108 kA 1-Phase NEMA 4 Service Entrance Surge Protector
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 786685436883
Applications - B22 Surge Suppressor
Catalog Number - CHSPT2ULTRA
ERP_productname - CUT CHSPT2ULTRA SPD TYPE 2 CHSP SURGE PROTECTOR
Enclosure - 4
Packaging
1 ea
EAN
00786685436883
Part #
281768
Catalog #
CHSPT2ULTRA
Commercial reference
CHSPT2ULTRA
12-Digit UPC:
786685436883
Applications:
B22 Surge Suppressor
Catalog Number:
CHSPT2ULTRA
ERP_productname:
CUT CHSPT2ULTRA SPD TYPE 2 CHSP SURGE PROTECTOR
Enclosure:
4
Enclosure Material:
Stainless Steel
Enclosure Rating:
4
Enclosure Type:
NEMA 4
Family Brand Name:
Eaton
Heights:
2-1/2 Inch
Interrupt Rating:
200 kAIC
Length:
7 Inch
NEMA Size:
4
Number of Phases:
1 Phase
Type:
SPD Type 2
Voltage:
120/240 Volt
SoneparProductId:
SKU_US_57761445
Eaton SPD Type 2 CHSP Service Entrance Surge Protection, 120/240V line, 150V L-N, 300V L-L MCOV, 600V L-N, 1000V L-L, 800V N-G, 600V L-G VPR, 22 kA SCCR, NEMA 4, Single-phase, 60 Hz, 20 kA nominal current discharge, 108 kA surge current
