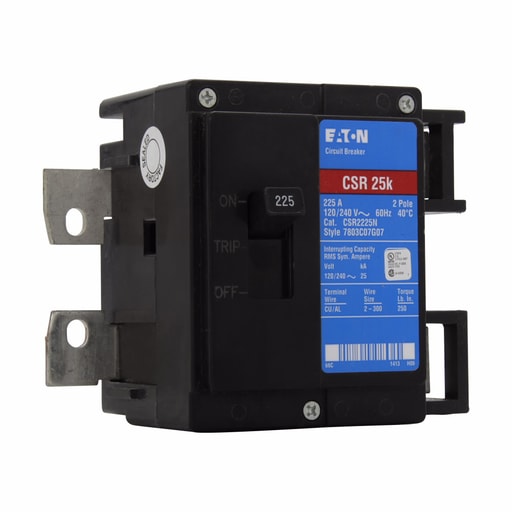

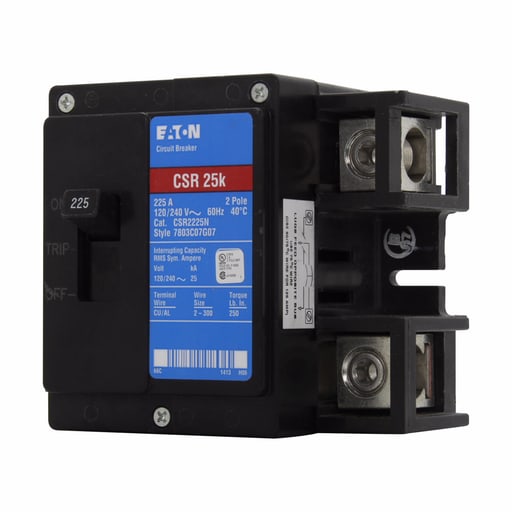

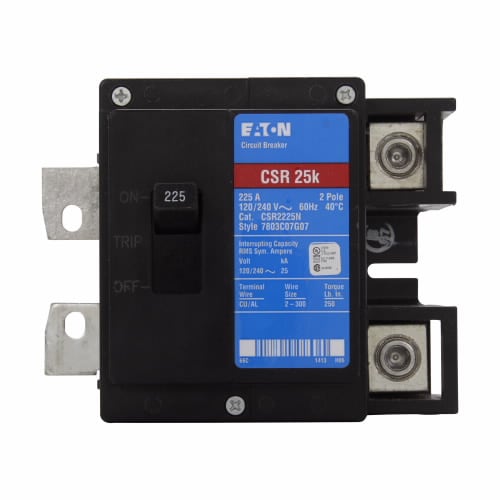

Cutler-Hammer / Eaton - Eaton Electrical CSR2225N 120/240 VAC 225 Amp 2-Pole Main Circuit Breaker
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782114106242
Amperage - 225 Amp
Catalog Number - CSR2225N
ERP_productname - CUT CSR2225N CSR MAIN KIT 225A/2 POLE 120/240V 25K
Family Brand Name - Eaton
Packaging
1 ea
EAN
00782114106242
Part #
369288
Catalog #
CSR2225N
Commercial reference
CSR2225N
12-Digit UPC:
782114106242
Amperage:
225 Amp
Catalog Number:
CSR2225N
ERP_productname:
CUT CSR2225N CSR MAIN KIT 225A/2 POLE 120/240V 25K
Family Brand Name:
Eaton
Heights:
3.1 Inch
Interrupt Rating:
25 kAIC
Length:
3.1 Inch
Number of Poles:
2 Pole
Type:
Standard Circuit Breaker
Voltage:
120/240 Volt
Widths:
2 in
Wire Size:
300 kcmil
SoneparProductId:
SKU_US_57929562
Eaton Type CSR Standard Circuit Breaker,Standard circuit breaker,225 A,25 kAIC,Two-pole,120/240 V,CH,#2 - 300 kcmil,CSR,For use in type ECC unit enclosures,Single-phase
