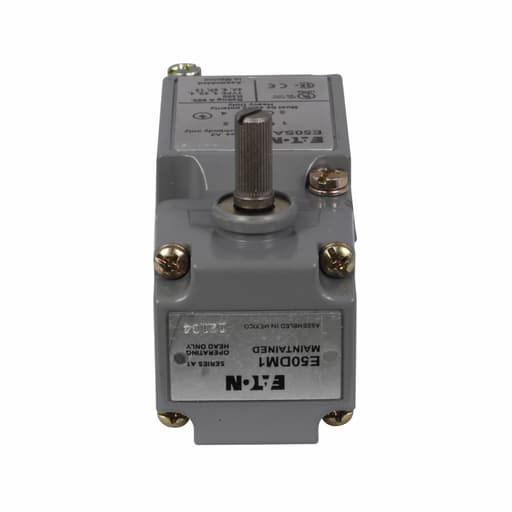

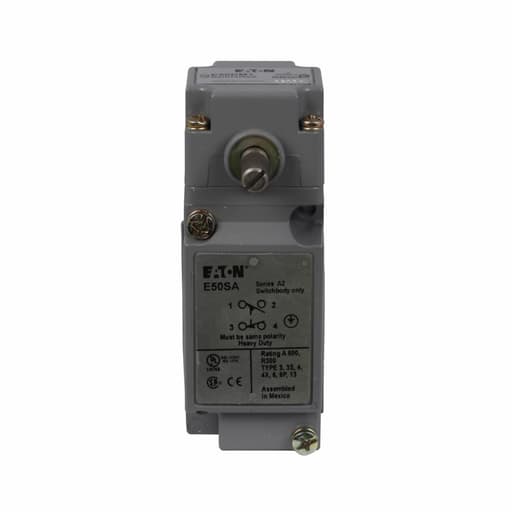

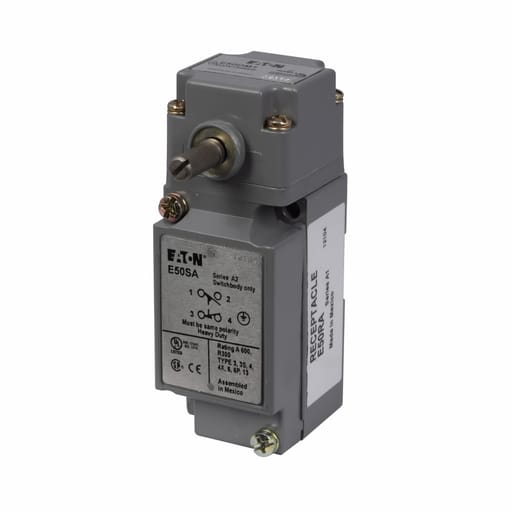

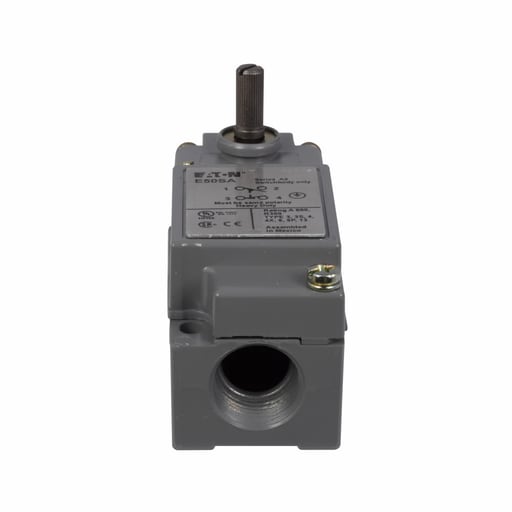

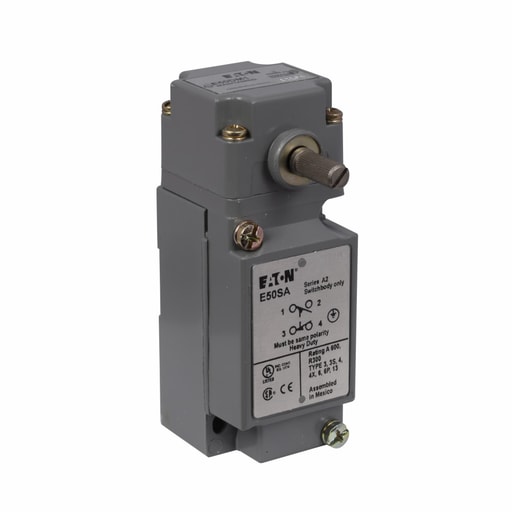

Cutler-Hammer / Eaton - Eaton Electrical E50AM1 240 VAC 10 Amp 1-Pole 1NO 1NC Die-Cast Zinc Maintained Heavy Duty Plug-In Switch
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782113343921
Actuator - Side Rotary
Catalog Number - E50AM1
ERP_productname - CUT E50AM1 NEMA LIMIT SWITCH,SIDE ROTARY,2POS,NONC
Enclosure Material - Zinc Die Cast
Packaging
1 ea
EAN
00782113343921
Part #
450677
Catalog #
E50AM1
Commercial reference
E50AM1
12-Digit UPC:
782113343921
Actuator:
Side Rotary
Catalog Number:
E50AM1
ERP_productname:
CUT E50AM1 NEMA LIMIT SWITCH,SIDE ROTARY,2POS,NONC
Enclosure Material:
Zinc Die Cast
Family Brand Name:
Eaton
Heights:
2.46 Inch
Length:
4.22 Inch
Material:
Zinc Die Cast
Number of Poles:
2 Pole
Tc Connection:
Screw Terminal, Plug-In
Type:
Heavy Duty
Widths:
1.54 in
SoneparProductId:
SKU_US_59152183
E50 NEMA Limit Switch,Side Rotary,Two Pos,Maintained,14-250F(-10-121C),1NO-1NC,10A@240Vac,1A@250Vdc,Mech 10M Elec 1M cy full load,8000 cy/hr,Screw term,1/2NPT cond,NEMA 1,3,3S,4,4X,6,6P,13,IP67,Diec Zn,UL,CSA,CE
