Cutler-Hammer / Eaton - ETN CN55GN3AB NEMA OPEN REV CONT SI
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782113973586
Amperage - 45 Amp
Applications - Commercial, Institutional Buildings, Structures
Catalog Number - CN55GN3AB
ERP_productname - CUT CN55GN3AB NEMA OPEN REV CONT SIZE 2 120V COIL
Packaging
1 ea
EAN
00782113973586
Part #
285583
Catalog #
CN55GN3AB
Commercial reference
CN55GN3AB
12-Digit UPC:
782113973586
Amperage:
45 Amp
Applications:
Commercial, Institutional Buildings, Structures
Catalog Number:
CN55GN3AB
ERP_productname:
CUT CN55GN3AB NEMA OPEN REV CONT SIZE 2 120V COIL
Family Brand Name:
Eaton
Heights:
5.05 Inch
Length:
4.44 Inch
Number of Phases:
1,3 Phase
Number of Poles:
3 Pole
Size:
2
Type:
Non-Reversing
SoneparProductId:
SKU_US_130386861

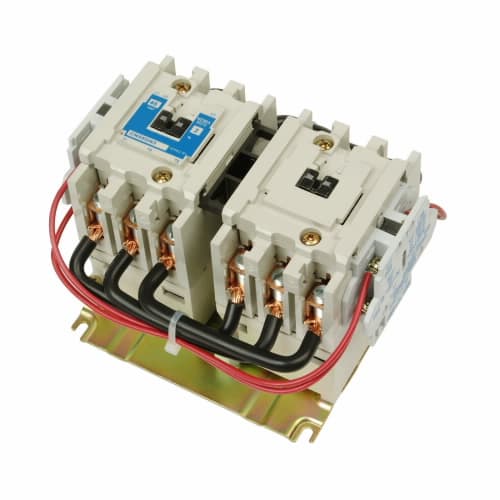

Eaton Freedom NEMA motor control contactor,Reversing contactor, 3 hp at 115V, 7-1/2 hp at 230V, 10 hp at 208V, 15 hp at 240V, 25 hp at 480,600V maximum horsepower, 120V/60 Hz or 110V/50 Hz coil voltage, 45A, Three-pole, Size 2
