Cutler-Hammer / Eaton - ETN LGE3350FAG LGE 3P 350 A Fixed t

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 782116142392

  • Amperage - 350 Amp

  • Applications - Electrical Assemblies, Panels and EOEMs

  • Catalog Number - LGE3350FAG

  • Current - 350 Amp

Packaging

  • 1 ea

EAN

00782116142392

Part #

450785

Catalog #

LGE3350FAG

Commercial reference

LGE3350FAG

12-Digit UPC:

782116142392

Amperage:

350 Amp

Applications:

Electrical Assemblies, Panels and EOEMs

Catalog Number:

LGE3350FAG

Current:

350 Amp

ERP_productname:

CUT LGE3350FAG LGE 3P 350 A FIXED THERMAL ADJ MAG BRK

Enclosure Material:

Stainless Steel

Family Brand Name:

Eaton

Frame:

LG

Heights:

5.48 Inch

Interrupt Rating:

18 kAIC

Length:

4.09 Inch

Number of Poles:

3 Pole

Trip Type:

Fixed Thermal, Adjustable Magnetic

Type:

Molded Case Circuit Breaker

SoneparProductId:

SKU_US_53070436

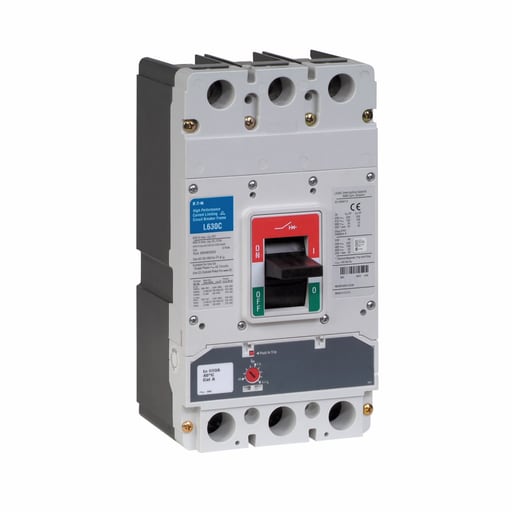

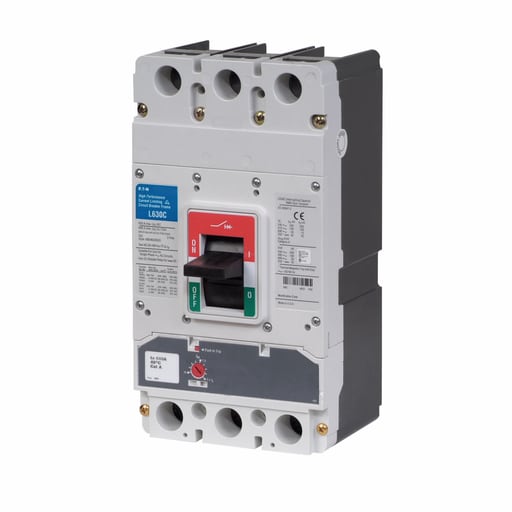

Eaton Series G molded case circuit breaker, LG-frame, LG, Fixed thermal, adjustable magnetic trip, Three-pole, 350 A, 65 kAIC at 240 Vac, 35 kAIC at 480 Vac, 18 kAIC at 600 Vac, Line and load, Metric, 50/60 Hz, 80% rated
