Ferraz Shawmut - Ferraz Shawmut US141I 14 x 51 mm 1-Pole 50 Amp 750 Volt Fuse Holder

CopyCopy

Login or create an account to check prices & order

Essential specifications

  • 12-Digit UPC - 782001310967

  • Amperage - 50 Amp

  • Applications - All circuits up to 750V requiring semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.

  • Catalog Number - US141I

  • Country of Origin - Tunisia

Packaging

  • 1 ea

EAN

00782001310967

Part #

178359

Catalog #

US141I

Commercial reference

US141I

12-Digit UPC:

782001310967

Amperage:

50 Amp

Applications:

All circuits up to 750V requiring semiconductor fuses for protection of small inverters, UPS systems, motor drives, etc.

Catalog Number:

US141I

Country of Origin:

Tunisia

ERP_productname:

FRZ US141I MODULAR FUSE HOLDER

Family Brand Name:

Ferraz Shawmut Canada, Inc.

Heights:

4.36 Inch

Length:

3.01 Inch

Mounting Type:

DIN Rail Acc. EN 60716

Number of Poles:

1-4 Pole

Rated Voltage AC:

800 V

Rated Voltage DC:

1000 V

Short Circuit Current Ratng:

100000 A

Tc Connection:

Pressure Plate

Torque:

30.98 lb-in

Torque Rating:

30.98 lb-in

Type:

UltraSafe

Voltage:

750 Volt

Widths:

1.04 in

SoneparProductId:

SKU_US_585745759

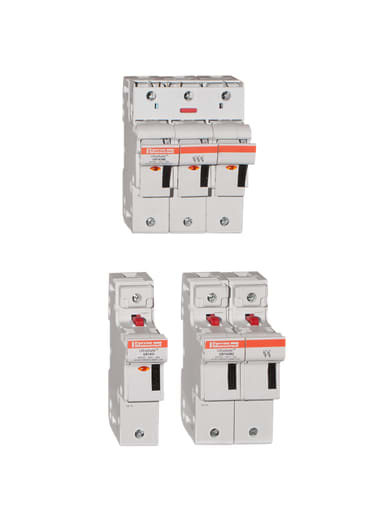

The innovative and comprehensive UltraSafe range of Mersen fuse-holders. Modular fuse-holders are finger-safe under IEC standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). Modular fuse-holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicator, in UL + IEC version. Multi-pole units can also be field assembled by ordering pin-ties assembly kit. In this size, the range also offers the possibility to use microswitches (supplied with the holders or ordered separately) to allow remote indication. UltraSafe range is made of tough and durable thermoplastic or thermoset material. Features: Sealable in closed and open position; Lockable; Flame retardant materials with glow wire flammability index to 960±C; Optional visual blown fuse indicator & microswitch; Modular design; Plastic material UL94V2 mini; DIN rail mounting; Finger safe; Degree of protection: IP20; Multi-pole assembly kit available
