Ferraz Shawmut - Mersen 20306R 250v 30amp 1-Pole Class R, Spring-Reinforced Fuse Block
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001750374
Amperage - 30 Amp
Catalog Number - 20306R
Class - R
Country of Origin - Mexico
Packaging
1 ea
EAN
00782001750374
Part #
179248
Catalog #
20306R
Commercial reference
20306R
12-Digit UPC:
782001750374
Amperage:
30 Amp
Catalog Number:
20306R
Class:
R
Country of Origin:
Mexico
ERP_productname:
FRZ 20306R 30A 250V SP FUSE BLK
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class R
Heights:
1.38 Inch
Length:
3 Inch
Mounting Type:
Direct Screw Mount
Number of Poles:
1 Pole
Rated Voltage AC:
250 V
Rated Voltage DC:
250 V
Tc Connection:
Box
Torque:
35 lb-in
Torque Rating:
35 lb-in
Type:
Open-Style
Voltage:
250 Volt
Widths:
1.25 in
SoneparProductId:
SKU_US_58117267

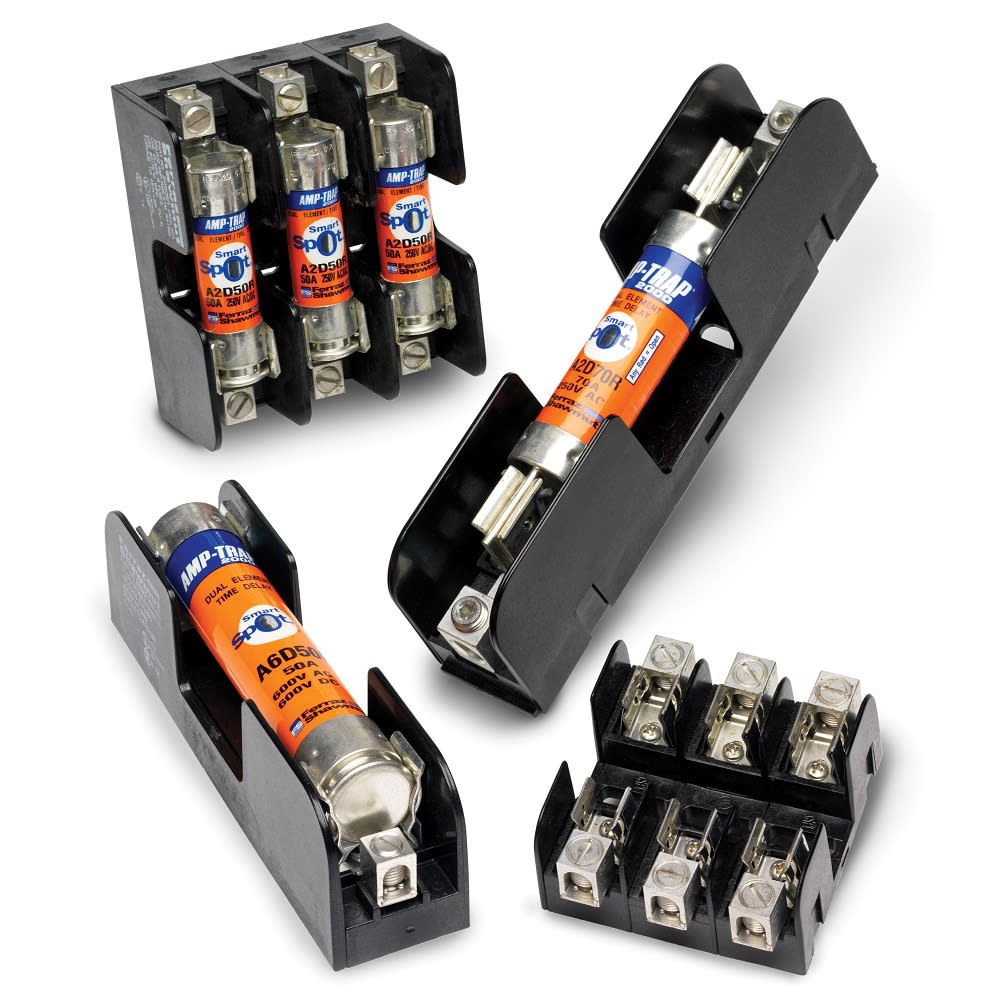

Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired.All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced. Certifications: All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
