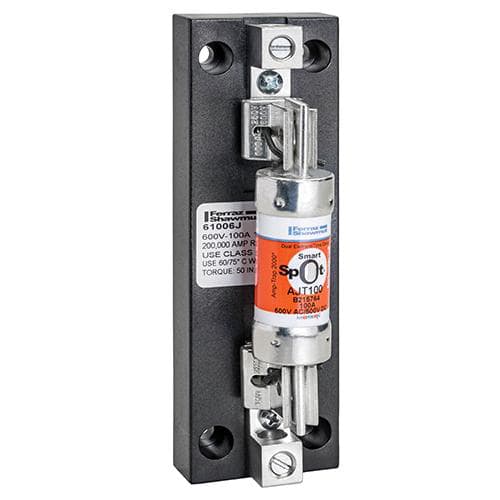

Ferraz Shawmut - Mersen 61006J 600V 100A J 1P FUSE B
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001754037
Amperage - 100 Amp
Catalog Number - 61006J
Class - J
Country of Origin - Mexico
Packaging
1 ea
EAN
00782001754037
Part #
108529
Catalog #
61006J
Commercial reference
61006J
12-Digit UPC:
782001754037
Amperage:
100 Amp
Catalog Number:
61006J
Class:
J
Country of Origin:
Mexico
ERP_productname:
FRZ 61006J J FUSE BLOCK 600V 100A 1P CBR
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class J
Heights:
2.36 Inch
Length:
7 Inch
Material:
Polycarbonate
Mounting Type:
Direct Screw Mount
Number of Poles:
1 Pole
Rated Voltage AC:
600 V
Rated Voltage DC:
600 V
Torque:
120 lb-in
Torque Rating:
120 lb-in
Type:
Open-Style
Voltage:
600 Volt
Widths:
2.31 in
SoneparProductId:
SKU_US_52737927
A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum conductors. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30A, 60A and the new 100A SJ fuse blocks feature a unique adder block configuration which can be snapped onto 1-, 2-, or 3-pole blocks to form multi-pole segmented blocks of as many poles as desired. All fuse clips are made of high conductivity tin-plated copper, with a choice of spring-reinforced or non-spring reinforced clips. Space saving options are now available in the 30A and 100A configurations which are noted in the product selection tables. Features: Class J Blocks (600V) use with AJT, A4J, HSJ - Certifications: All class J fuse blocks meet the requirements of UL4248 (formerly UL512); UL listed Guide IZLT, File E52283; CSA certified class 6225, File 32169
