Ferraz Shawmut - Mersen 6633R 600V 600A R 3P FUSE BL
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001665135
Amperage - 600 Amp
Catalog Number - 6633R
Class - R
Country of Origin - Mexico
Packaging
1 ea
EAN
00782001665135
Part #
227749
Catalog #
6633R
Commercial reference
6633R
12-Digit UPC:
782001665135
Amperage:
600 Amp
Catalog Number:
6633R
Class:
R
Country of Origin:
Mexico
ERP_productname:
FRZ 6633R R FUSE BLOCK 600V 600A 3P BXR
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class R
Heights:
4.74 Inch
Length:
16.12 Inch
Material:
Phenolic
Mounting Type:
Direct Screw Mount
Number of Poles:
3 Pole
Rated Voltage AC:
600 V
Rated Voltage DC:
600 V
Torque:
500 lb-in
Torque Rating:
500 lb-in
Type:
Open Style
Voltage:
600 Volt
Widths:
11 in
SoneparProductId:
SKU_US_53005773

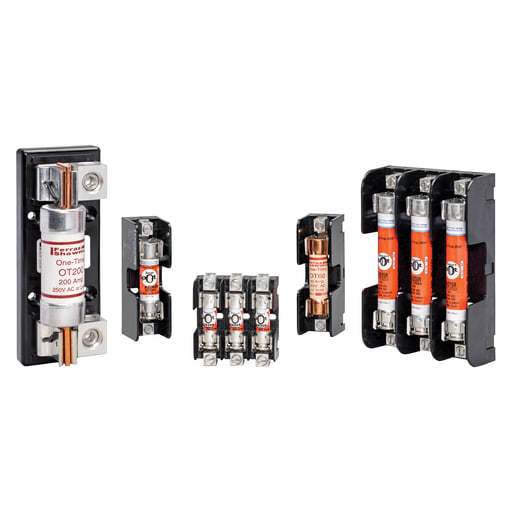

Mersen Class H, K and R fuse blocks accommodate all Class H, K and R 250 and 600V power fuses. A choice of screw, pressure plate, box and special order stud connectors fit a wide range of stranded or solid copper or aluminum wire. Insulators are either molded glass-filled polycarbonate (GFPC) or phenolic with verified dielectric strength in excess of 2500V. 30, 60 and 100A fuse blocks feature a unique adder block which can be snapped onto 1-, 2- or 3-pole blocks to form multipole segmented blocks of as many poles as desired.All fuse clips are made of high conductivity tinplated copper, with a choice of spring reinforced or nonspring reinforced clips in 30A and 60A. Clips 100A and above are spring reinforced. Certifications: All fuse blocks meet the requirements of UL 4248; UL listed, guide IZLT, File E52283; UL recognized component guide IZLT2, file E52283; CSA certified class 6225, File 32169
