Ferraz Shawmut - Mersen A089493 CC1051CPGRB20X127/10
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 3605340083552
Amperage - 10 Amp
Applications - DC control circuit, measuring & monitoring auxiliaries circuit
Catalog Number - A089493
Country of Origin - France
Packaging
1 ea
EAN
33605340083553
Part #
157060
Catalog #
A089493
Commercial reference
A089493
12-Digit UPC:
3605340083552
Amperage:
10 Amp
Applications:
DC control circuit, measuring & monitoring auxiliaries circuit
Catalog Number:
A089493
Country of Origin:
France
ERP_productname:
FRZ A089493 CC1051CPGRB20X127/10
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Length:
5 Inch
Mounting Type:
Clip
Rated Voltage DC:
1000 V
Tc Connection:
Ferrule
Type:
DC Fuses
Voltage:
1,000 VDC
SoneparProductId:
SKU_US_73723780

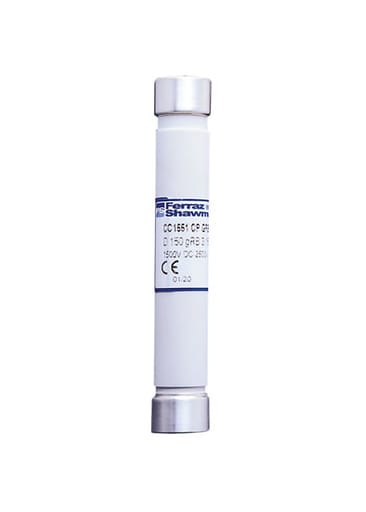

Specially developed for DC applications, 20x127 gR cylindrical is a fast acting, full range fuse used in the protection of auxiliaries, control circuit and other measuring and monitoring devices. Features: International 20x127mm (13/16\" x 5\") for worldwide acceptance; gR Class according to VDE 636-23 and IEC 60269-4; Low I²t for improved semiconductor protection; Eliminate all overloads; Extremely fast acting; Current limiting; Excellent cycling capability - Certifications: UL Recognized component; UL file No. E76491; IEC 60269-4 Compliance
