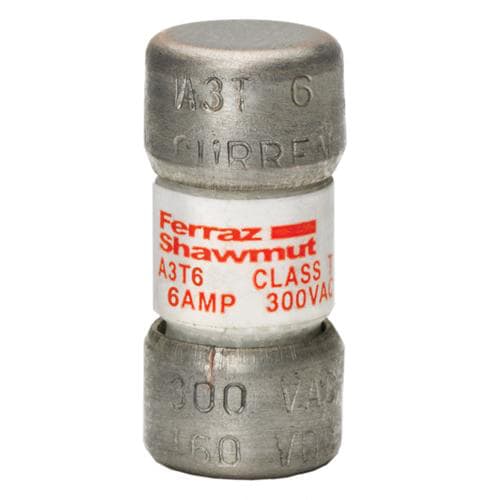

Ferraz Shawmut - Mersen A3T6 300V 6A T FUSE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001890049
Amperage - 6 Amp
Applications - Load centers Panelboards Switchboards Circuit Breakers Metering Centers
Catalog Number - A3T6
Class - T
Packaging
1 ea
EAN
30782001890040
Part #
184917
Catalog #
A3T6
Commercial reference
A3T6
12-Digit UPC:
782001890049
Amperage:
6 Amp
Applications:
Load centers Panelboards Switchboards Circuit Breakers Metering Centers
Catalog Number:
A3T6
Class:
T
Construction:
GMG
ERP_productname:
FRZ A3T6
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class T
Interrupt Rating:
200 kAIC
Length:
0.88 Inch
Mounting Type:
Clip
Rated Voltage AC:
300 V
Rated Voltage DC:
160 V
Tc Connection:
Ferrule
Type:
Fast Acting
Voltage:
300 VAC
SoneparProductId:
SKU_US_71835426
Fast-acting A3T Class T fuses combine two highly desirable features - high current-limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification. Applications: Load centers; Panelboards; Switchboards; Circuit breakers; Metering centers - Features: Extremely current-limiting for low peak let-thru current; Unique dimensions prevent replacement by other fuse classes; Blade-stamped catalog numbers for permanent identification; Small physical size for greater design flexibility - Approvals & Standards: UL listed to standard 248-15 File E2137; CSA certified to standard C22.2 no. 248.15; DC listed to UL standard 248
