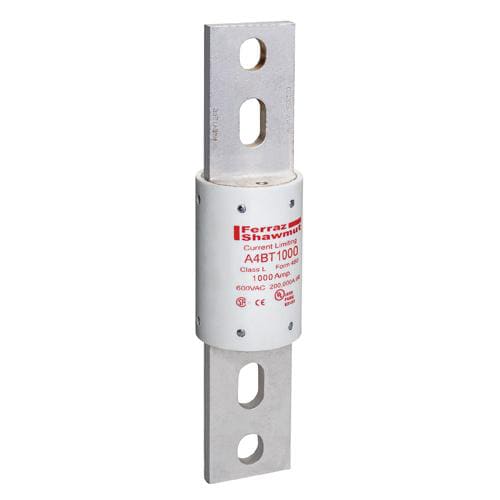

Ferraz Shawmut - Mersen A4BT1000 600V 1000A L TD FUS
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001939922
Amperage - 1000 Amp
Applications - For Motor Controllers, Transformers, Main Feeders
Catalog Number - A4BT1000
Class - L
Packaging
1 ea
EAN
10782001939929
Part #
164095
Catalog #
A4BT1000
Commercial reference
A4BT1000
12-Digit UPC:
782001939922
Amperage:
1000 Amp
Applications:
For Motor Controllers, Transformers, Main Feeders
Catalog Number:
A4BT1000
Class:
L
ERP_productname:
FRZ A4BT1000 L TD FUSE 600V 1000A A4BT
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class L
Interrupt Rating:
100, 200 kAIC
Length:
10-3/4 Inch
Mounting Type:
Bolt-On
Rated Voltage AC:
600 V
Rated Voltage DC:
500 V
Tc Connection:
Blade
Type:
Time-Delay
Voltage:
600 VAC, 500 VDC
SoneparProductId:
SKU_US_52385326
The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment. Features: Unique dimensions prevent replacement by other fuse classes.; Blade-stamped catalog numbers for permanent identification; Glass melamine body and plated terminals provide superior reliability in harsh environments - Applications: Motors; Motor controllers; Transformers; Mains; Feeders - Approvals & Standards: UL Listed to Standard 248-10, File E2137; CSA Certified to Standard C22.2, No. 248.68; Self-certified for DC per UL248 (601-2000)
