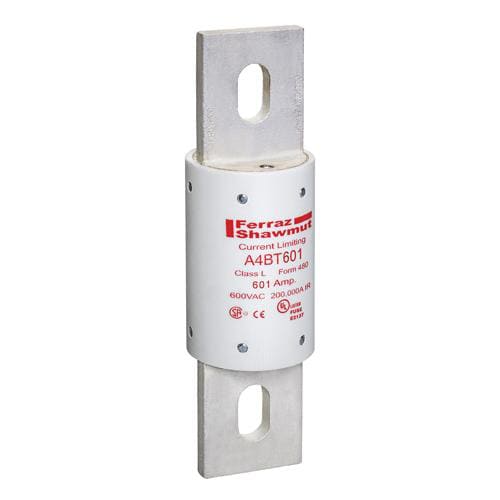

Ferraz Shawmut - Mersen A4BT601 601 Amp 600 Volt Class L Time Delay Fuse

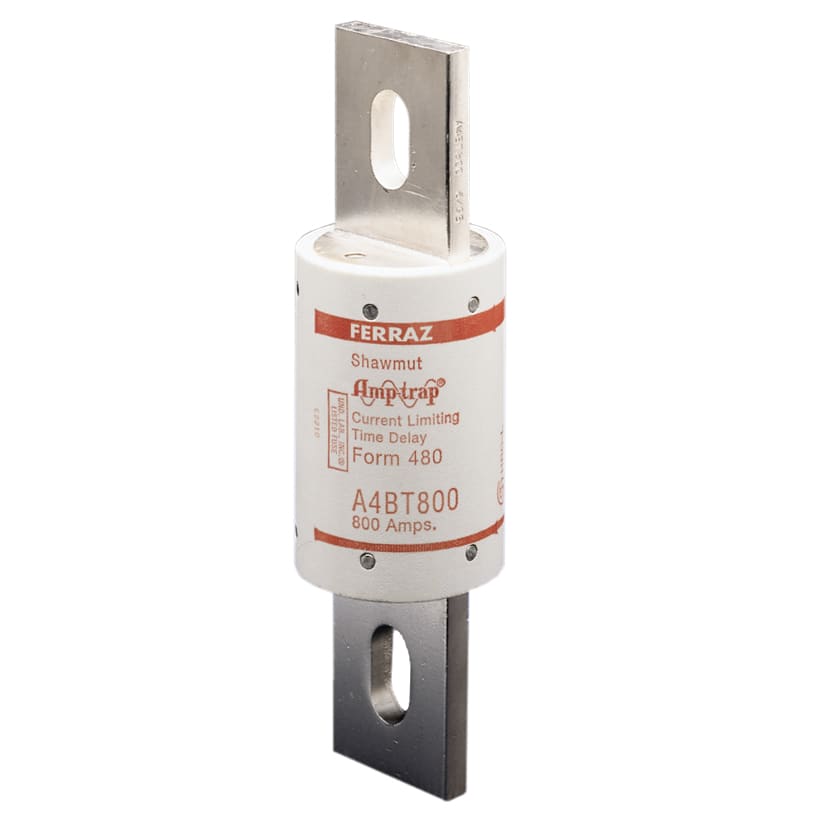

The high interrupting rating of the Amp-Trap A4BT current-limiting fuses makes it suitable for protecting mains, feeders, and general circuits. The 10-second time-delay at 500 percent of fuse rating is ideal for large motors and other loads with high inrush currents. A4BT fuses can be applied to normal loads up to its full ampere rating to allow 100percent rating of equipment. Features: Unique dimensions prevent replacement by other fuse classes.; Blade-stamped catalog numbers for permanent identification; Glass melamine body and plated terminals provide superior reliability in harsh environments - Applications: Motors; Motor controllers; Transformers; Mains; Feeders - Approvals & Standards: UL Listed to Standard 248-10, File E2137; CSA Certified to Standard C22.2, No. 248.68; Self-certified for DC per UL248 (601-2000)
