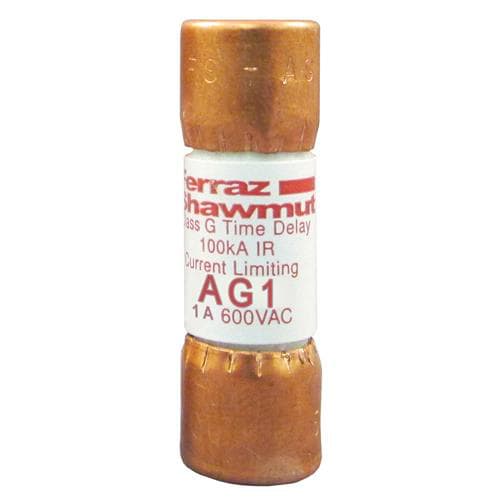

Ferraz Shawmut - Mersen AG1 600V 1A CLASS G FUSE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001905057
Amperage - 1 Amp
Applications - For Lighting Heating Appliances
Catalog Number - AG1
Class - G
Packaging
1 ea
EAN
30782001905058
Part #
127817
Catalog #
AG1
Commercial reference
AG1
12-Digit UPC:
782001905057
Amperage:
1 Amp
Applications:
For Lighting Heating Appliances
Catalog Number:
AG1
Class:
G
ERP_productname:
FRZ AG1 600V 1A CLASS G FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class G
Interrupt Rating:
100 kAIC
Length:
1.31 Inch
Mounting Type:
Clip
Rated Voltage AC:
600 V
Tc Connection:
Ferrule
Type:
North American Power Fuses
Voltage:
600 VAC
SoneparProductId:
SKU_US_52433703
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits. Features: Four unique sizes from 1/2-60 amperes do not allow inter-changeability with other fuse classes; Fiberglass bodies provide dimensional stability in harsh industrial settings - Applications: Lighting; Heating (except in Canada where fuses must be .P. or .D. type); Appliances - Approvals & Standards: UL listed to standard 248-5 File E2137; CSA certified to standard C22.2 No. 248.5
