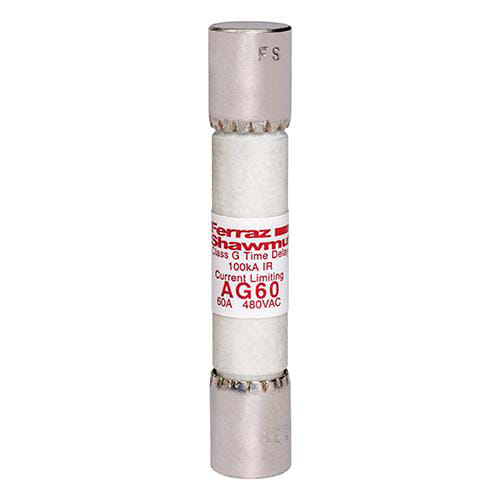

Ferraz Shawmut - Mersen AG60 60 Amp 480 Volt Class G General Purpose Fuse
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001905224
Amperage - 60 Amp
Applications - For Lighting, Heating, Appliances
Catalog Number - AG60
Class - G
Packaging
1 ea
EAN
30782001905225
Part #
110441
Catalog #
AG60
Commercial reference
AG60
12-Digit UPC:
782001905224
Amperage:
60 Amp
Applications:
For Lighting, Heating, Appliances
Catalog Number:
AG60
Class:
G
Construction:
Fiberglass
ERP_productname:
FRZ AG60 480V CLASS G FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class G
Interrupt Rating:
100 kAIC
Length:
2-1/4 Inch
Mounting Type:
Clip
Rated Voltage AC:
480 V
Tc Connection:
Ferrule
Type:
North American Power Fuses
Voltage:
480 VAC
SoneparProductId:
SKU_US_59016010
The Mersen Amp-Trap AG fuse series is a complete line of UL Listed Class G fuses with time-delay (above 5A rating). Class G fuses are made in four physical sizes and provide branch-circuit protection for lighting, heating, and appliance circuits. Features: Four unique sizes from 1/2-60 amperes do not allow inter-changeability with other fuse classes; Fiberglass bodies provide dimensional stability in harsh industrial settings - Applications: Lighting; Heating (except in Canada where fuses must be .P. or .D. type); Appliances - Approvals & Standards: UL listed to standard 248-5 File E2137; CSA certified to standard C22.2 No. 248.5
