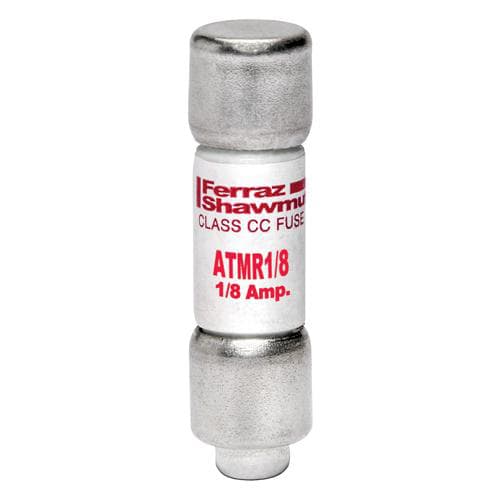

Ferraz Shawmut - Mersen ATMR1/8 600V 1/8A CC FUSE
Login or create an account to check prices & order
Essential specifications
12-Digit UPC - 782001903374
Amperage - 0.125 Amp
Applications - Control Circuits, Lighting, General Loads
Catalog Number - ATMR1/8
Class - CC
Packaging
1 ea
EAN
30782001903375
Part #
189700
Catalog #
ATMR1/8
Commercial reference
ATMR1/8
12-Digit UPC:
782001903374
Amperage:
0.125 Amp
Applications:
Control Circuits, Lighting, General Loads
Catalog Number:
ATMR1/8
Class:
CC
Construction:
Fiberglass
ERP_productname:
FRZ ATMR1/8 600V 1/8A CC FUSE
Family Brand Name:
Ferraz Shawmut Canada, Inc.
Fuse Class:
Class CC
Interrupt Rating:
200 kAIC
Length:
1-1/2 Inch
Mounting Type:
Clip
Rated Voltage AC:
600 V
Rated Voltage DC:
600 V
Tc Connection:
Ferrule
Type:
North American
Voltage:
600 VAC
SoneparProductId:
SKU_US_51891836
Amp-Trap ATMR fast-acting fuses are the smallest dimension 600V fuses suitable for branch-circuit protection. The ATMR is a popular choice for economical protection of control circuits and control circuit transformers where available short circuit currents exceed 10,000 amperes. ATMR's rejection dimensions prevent substitution by lesser rated fuses. These fast-acting fuses give current-limiting protection to general circuits. Features: Rejection-style design prevents replacement errors when used with recommended fuse blocks; Versatile design for individual component and branch circuit protection - Applications: Control circuits; Lighting; General loads; Branch circuit protection - Approvals & Standards: UL Listed to Standard 248-4 File E2137; CSA Certified to Standard C22.2 No. 248.4; DC listed to UL Standard 248
